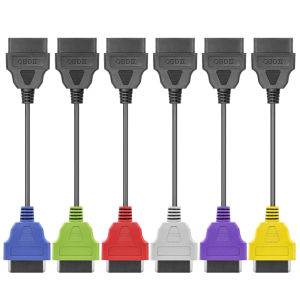

6PCS For Fiat ECUScan Adapter MultiECUScan 6 Color OBD OBD2 Connector ABS Airbag OBD2 Scanner Diagnostic Cable For Fiat ECUScan

MultiECUScan / For FiatECUScan Adapter Cable BundleThank you for purchasing the Gendan adaptor cables for the For FiatECUScan package.Cable length: 22cmNote: There are only used as a connecte cable and does not contain any software or diagnostic cablesThere are 6 adaptor cables included which perform different functions.Green ABS / Power Sreeing adapter lead ( "Adapter 1" on MultiECUScan website)-Designed to allow access to the ABS and Power Steering systems on supported vehicles. This adapter has a green connector on one end for easy identification.Using this adapter, Pin 7 on the diagnostic tool is connected to Pins 1,7,9 & 12 on the car.Red Air-bag adapter lead ( "Adapter 2" on MultiECUScan website)-Designed to allow access to the Air-bag system on supported vehicles.This adapter has a red connector on one end for easy identification.Using this adapter, Pin 7 on the diagnostic tool is connected to pin 3 only pn the car.Yellow CAN adapter lead ( "Adapter 3" on MultiECUScan website)-Designed to allow access to the low-speed CAN system on supported vehicles.This adapter has a yellow connector on one end for easy identification.Using this adapter, Pin 6 & 14 on the diagnostic tool are connected to pins 1 & 9Respectively on the car, Pin 7 on the diagnostic tool is connected to pin 12 on the car.Purple Electric hood adapter lead ( "Adapter 4" on MultiECUScan website)-Designed to allow access to the electric hood system on supported vehicles.This adapter has a purple connector on the end for easy identification.Using this adapter, Pin 7 on the diagnostic tool is connected to pins 7,8,11 & 13 one the car.Blue Control Module Adapter Wire Design allows access to enhanced features on the vehicle (eg, multimedia, blind spot sensors, etc.)Gray base control module adapter wire designed to allow access to basic functions on the vehicle (eg headlights, parking controller, ABS, electric steering, etc.)Packing List:6 x ECU connecte Cables for Fiat
