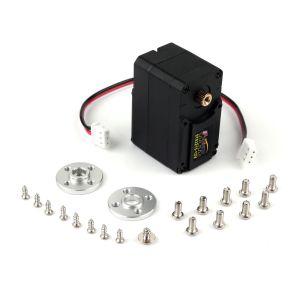

Feetech STS3215 12V 30KG High Torque Smart RC Servo TTL Serial Bus Robot Servo Motor for SO-ARM100 Teaching Robotic Project

Feetech STS3215 12V 30KG High Torque Smart RC Servo TTL Serial Bus Robot Servo for SO-ARM100 Teaching Robotic Project Feature: *Heavy Load Capacity: Stall torque is up to 30Kg.cm at 12V. *Wider Rotation Angle: Controllable angle range from 0 to 360 degrees, high torque and high precision gear make small vibration. *Reliable Quality: Full steel gear with higher durability. Higher voltage saves more current and improves robot endurance. You can use it longer. *Wide Applications: Attaching other brackets or servos, you can DIY an advanced robot (bipedal robot, spider robot, etc.), SO-ARM100 Teaching robot arm, PTZ cameras, wheel-drives on robots, and other mechanical projects that require more torque. Servo Parameter: Weight: 55g Size: 45.2X24.7X35mm Gear: metal gear Motor: core motor Gear ratio: 1/345 Horn type: 25T/OD5.9mm Connector and cable: 15cm with 5264-3p Operating temperature: -20℃～60℃ Angle senor: 12Bits magnetic coding Opearing voltage: 6-14V No load speed: 0.22s/60°/12V No load current: 200mA Stall torque: 30kg.cm/12V Stall current: 2.7A Idle current: 30mA Kt constant: 10kg.cm/A Running angle: 360°（0-4096） Neutral position: 180°(2048) Electronic protection: Over hot/voltage/current/load protection Feedback: Load/ position/ voltage/ current/ speed/ temperature feedback Package :
