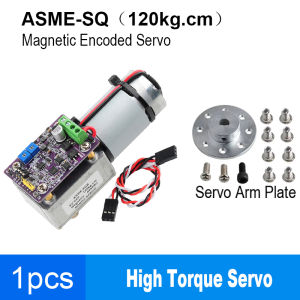

ASME-SQ 120KG Digital Servo High Torque Worm Shaft Power Off Self-Locking Magnetic Encoder Robot Arm Valve Control Camera DIY

ASME-SQ 120kg.cm Servo Worm Shaft Power Off Self-Locking Magnetic Encoder Servo for Robot Arm Valve Control Camera PTZ ControlFeatures:- Suitable for servo controller, model airplane wireless remote control and analog voltage control- Alloy gear high-power motor high-torque output- Ultra-lightweight gearbox body made of aluminum alloy- Easy to install and durableApplication:- Heavy-duty motion control of arm joints and leg joints of large robots- Industrial automation production line manipulator control- Precise control of valve angle- Large camera pan/tilt remote control- Various occasions requiring large torque angle controlRated Parameters:- Rated voltage: 7V~24V/DC (7V/MIN~30V/MAX, limit voltage)- No-load current: - Limit angle: ±180° or 0°~360° (MAX). The servo has electronic limit adjustment- Control mode: 1. RC mode: 1ms pulse mode: 1ms~2ms (pulse width)/50Hz (frequency), suitable for wireless remote control mode; 2ms pulse mode: 0.5ms~2.5ms (pulse width)/50Hz (frequency) ), suitable for multi-channelservo controller mode control. 2. Analog voltage mode: 0V-5V input voltage (0V corresponds to 0°, 5V corresponds to 360°)- Control resolution: 360° corresponds to 12Bit resolution (4096), for ARM 32-bit MCU, real digital port to read magnetic encoding data- Materials: gear and shaft: alloy steel; gear box body: cast aluminum- Weight: 400g/0.9 lb- Dimensions: 95 x 60 x 110mm/3.7 x 2.4 x 4.3"- Mechanical life: >1,000, 0000 times/full load (conservative value)Limit Parameters:- Limit voltage: 7V~30V/DC (MAX)- Current limit: 1A±0.2A (MAX)- Working angle: ±180° or 0°~360° (MAX)- Control method: 1. RC mode: 1ms pulse mode: 1ms~2ms (pulse width)/50Hz~333Hz (frequency); 2ms pulse mode: 0.5ms~2.5ms (pulsewidth)/50Hz~333Hz (frequency). 2. Analog voltage mode: 0V-5V input voltage 0V corresponds to 0°, 5V corresponds to 360°- Weight: 400g~450g/0.9-1 lbSpecifications:- Model: ASME-SQB- Starting torque: 180kg.cm max- Holding torque: 120kg.cm max
