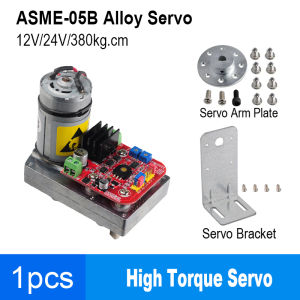

ASME05B 380kg.cm High Torque Super Alloy Servo Enhanced Model Steering Gear For Robot Arm Valve Control Camera PTZ DIY Parts

ASMC-05B (ASMC-05B Upgraded )ASMC-05B Robot Servo High Power Torque Support 12V~24V 180kg.cm Large Robotic Manipulator For RC Car QuadcopterPerfectly compatible with for Futaba, for JR, for SANWA, for Hitec and other remote systems.Exclusive unique technology to ensure stable power steering gear continued to work with other servo fuse protection is completely different. Once the fuse is blown, the servo can not continue to work. Our stability control servo rudder opportunity to work in a safe torque within. And never dropped.Technical Parameters:Operating voltage: 12V to 24V (DC) (this means that either a 12V or any voltage between 24V can be used)No-load rotational current: Maximum torque: 180kg.cm (24V) (measured, non-theoretical value)1764N.cm (24V) (measured, non-theoretical value)90kg.cm (12V) (measured, non-theoretical value)882N.cm (12V) (measured, non-theoretical value)Angular speed: 0.5s / 60 ° (60 degrees of rotation required 0.5s), 24V time;1.0s / 60 ° (60 degrees of rotation required 1.0s), at 12V;Rotation angle: 300 ° MAX, meaning that the maximum stroke of 300 degrees (0 to 300 ° adjustable electronic limit)Input modes: pulse signal (remote control, multiple servo controller, microcontroller) or analog voltage signal (potentiometer)Pulse signal input range: 0.5ms-2.5ms fits all "multi-channel servo controller", "1ms-2ms model aircraft remote control", "SCM", and so on;Voltage signal input range: 0V to + 5VControl accuracy: 0.32 °Weight: 530gGear Material: SteelDimensions: 95.5mm X 60.5mm X 102.6mm / 3.762.384.04"PCB Controller for ASMC SeriesPCB Controller for ASMC Series Robot Servo High Power Torque Support 12V~24V 180kg.cm Large Robotic ManipulatorArm PlateASME ASME Series Large Torque Servo Special Arm PlateApply to Servo Type: ASMC Series, ASME Series;Material: Hard Alloy Steel (Oxidation Resistance Disposal on the Surpface);Installation Method: D Type Hole Antiskid Key Connection (Compatible with ASMC ASME Servo Shaft);
