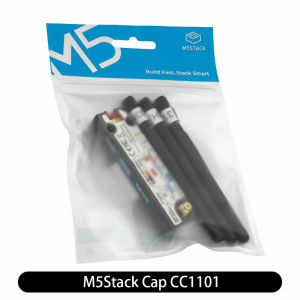

M5Stack | M5Stack Cap CC1101 Wireless Expansion Module For Cardputer ADV CardputerZero Support Sub-1 GHz RF NFC Functions

M5Stack Cap CC1101 Product Features SPI serial communication protocolCC1101 low-power Sub-1 GHz RF transceiverOperating frequency: 315/433/868/915 MHzSupports 2-FSK, 4-FSK, GFSK, MSK, ASK, and OOK modulation schemesIndependent 64-byte RF RX FIFO and TX FIFOBuilt-in dual SP3T RF switches and multi-band RF matching network for dynamic band switchingExternal RP-SMA antenna interfaceST25R3916 high-performance NFC front endSupports reader/writer mode and card emulation modeCompatible with NFC-A, NFC-B, NFC-F, and NFC-V standards512-byte NFC FIFOHY2.0-4P Grove expansion interfaceSupports sensor module expansionDevelopment Platform:ArduinoUiFlow2 Applications Wireless remote controlAccess-control identificationDevice communicationIoT prototyping Package Includes Cardputer Adv not included1 x Cap CC11011 x 315 MHz RP-SMA rubber antenna1 x 433 MHz RP-SMA rubber antenna1 x 868 MHz RP-SMA rubber antenna (for 868MHz and 915MHz bands) Specification Product details Product Description Cap CC1101 is a wireless expansion module integrating Sub-1 GHz RF and NFC functions, compatible with Cardputer-Adv and CardputerZero. The RF section is based on the TI CC1101 transceiver. Built-in dual single-pole triple-throw (SP3T) RF switches and multi-band RF matching circuits multiplex the 315MHz, 433MHz, 868MHz/915MHz bands to one RP-SMA antenna interface, supporting 2-FSK, 4-FSK, GFSK, MSK, ASK, OOK, and other modulation schemes. The NFC section uses the ST25R3916 chip and supports ISO14443A/B, FeliCa, and ISO15693 protocols. It can operate in reader/writer and card emulation modes. The module communicates via SPI, includes an onboard DC-DC buck circuit, and provides a standard HY2.0-4P Grove interface for easy sensor expansion. It is suitable for wireless remote control, access-control identification, device communication, and IoT prototyping. Compatible Cardputer not included
