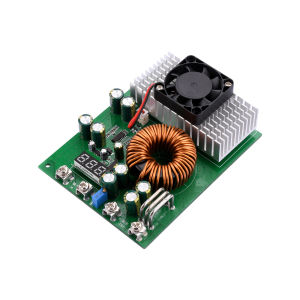

Aideepen | Adjustable DC Step Down Converter Module 1000W 90V Input Digital Display Buck Voltage Regulator for Electric Tools

Features:1. High performance; output voltage and current are continuously adjustable;2. Includes a digital display for greater convenience;3. Easy to operate—simply plug it in to use;4. Made with high-quality materials; supports input voltages up to 90V;5. Extremely high efficiency, up to 93%.Product Specifications:Input Voltage: DC 25–90 V (not compatible with 84 V batteries)Output Voltage: 2.5 V–50 V, adjustable (step-down only) (Maximum output voltage = input voltage × 0.8)Output Current: 50 A (MAX), continuous operation within 30 AMaximum Power: 1000 W (for power tools rated at 1000 W or less)Conversion Efficiency: ≥93%Protection: Overcurrent protection at 60 ADimensions: L 120 mm × W 97 mm × H 40 mmOperating Temperature: -40–85 °CStorage Temperature: -20 °C to +50 °CRelative Humidity: 65±20%Wiring: For high-power applications, use the thickest possible wires.Connection Descriptions:IN+: Input Positive TerminalIN-: Input Negative TerminalOUT+: Output Positive TerminalOUT-: Output Negative TerminalNote: When charging batteries, be sure to install a diode in the output circuit to prevent reverse current!Product List:1x Module (Model of your choice)
