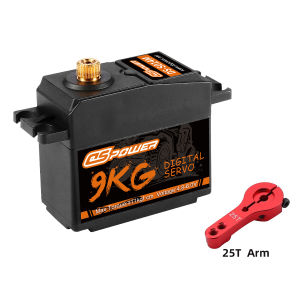

DSpower 9KG High Speed Servo Metal Gear Digital Servo with 25T Metal Arm 4.8~6.0V DC for 1/8 1/10 RC Car Plane Racing Axial

DSpower 9KG High Speed Servo Metal Gear Digital Servo with 25T Metal Arm 4.8~6.0V DC for 1/8 1/10 RC Car Plane Racing Axial

Features:

High performance digital standard

Low noise and long service life

Small volume and large torque

Suit for RC car boat helicopter model

Specifications:

Item name: DSpower S014M

Quantity: 1pcs

Operating Voltage : 4.8~6.0V DC

Max. Torque : 4.8V≥9.0kgf·cm ; 6.0V≥11kgf·cm

No Load Speed : 4.8V≤0.29sec/60°; 6.0V≤0.26sec/60°

Stall Current:4.8V ≦1800mA;6.0V≦2100mA

Consumption Current* (No Load):4.8V ≦180mA;6.0V≦200mA

Horn Gear Spline:25T

Remote controller Operating Angle:About 90°±10°

Max. Operating Travel Angle:180° ±10° (500~2500 us)

Dead Band Width: ≤ 6us

Mechanical Limit Angle: 360°

Communication Interface: PWM

Motor Type: Core motor

Case Material: ABS

Gear Set Material : Metal gear

Weight: 52g

Size: 49.5 × 20.2 × 36.64mm

Length of Connector cable: JR 250MM±5mm (exposed without plug)

Package included:

1 * 9KG Digital Servo 1 * Servo Arm Accessories 1 * 25T Red Metal Arm 1 * Box Package
