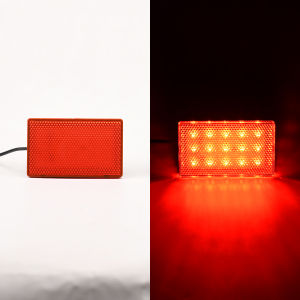

LED Car Strobe Tail Marker Light F1 Style Brake Pilot Auxiliary Lights Square Auto Rear Warning Reverse Stop Signal Lamp 12V

Specification:Name:F1 Style Led Car Brake Pilot LightLED Function:BrakeShell Color:Black, RedLight Color:RedMaterial:ABS+LEDFunction: Always on+flashingWiring InstructionsCorresponding to the 3 outgoing wires, the connection method is as follows:1. Yellow wire: Connect to brake light positive (+). Triggers rapid strobe flashing when braking, delivers strong visual warning to rear vehicles.2. Red wire: Connect to tail light / ACC positive (+). Keeps constant red light during driving, acts as a rear marker light to indicate vehicle outline.3. Black wire: Connect to vehicle ground / negative pole (-).Core Function Details1. Brake Strobe WarningWhen braking, the light flashes rapidly in F1 style, which has much stronger visual impact than ordinary constant brake lights. It can effectively attract the attention of rear drivers, and greatly reduces the risk of rear-end collision in fog, rain and night driving.2. Constant Tail Marker LightWhen the vehicle width light / ACC power is turned on, the light maintains a stable constant red brightness. It marks the rear width and position of the vehicle, and improves the recognizability of the vehicle outline in low visibility environment.3. Universal Waterproof DesignIntegrated sealed housing structure, effectively blocks rain, dust and road splash. It is suitable for installation on rear bumper, tailgate, trailer frame, motorcycle rear and other outdoor positions.Installation Steps1. Select a flat installation position on the rear bumper, tailgate or motorcycle rear, and clean the surface to ensure no dust and oil stain.2. Fix the lamp body on the mounting position with the included bracket and screws, and adjust the irradiation angle properly.3. Connect the three wires according to the wiring instructions above, and confirm the positive and negative poles are correct.4. Test the constant-on mode and brake strobe mode respectively to confirm all functions work normally.5. It is recommended to wrap the wiring connector with insulating tape or heat shrink tube to enhance waterproof performance.Note:1.Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures.2.Please allow 3-5mm measuring deviation due to manual measurement.fatkun
