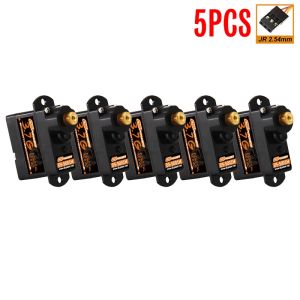

DSpower 3.7g Metal Gear Digital Servo 1.2kgf.cm Torque for RC Car Airplane Fixed-wing Helicopter Plane Drone Robot WLtoys Parts

DSpower 3.7g Metal Gear Digital Servo 1.2kgf.cm Torque for RC Car Airplane Fixed-wing Helicopter Plane Drone Robot WLtoys Parts

Item name: DSpower DS-S001M

Quantity: 1pcs

Operating Voltage : 3.7~4.2V DC

Max. Torque : 3.7V≥0.4kgf·cm ; 4.2V≥0.45kgf·cm

No Load Speed : 3.7V≦0.08sec/60° ; 4.2V≦0.06sec/60°

Stall Current:3.7V≦330mA;4.2V≦380mA

Consumption Current* (No Load):3.7V ≦50mA ;4.2V≦60mA

Max. Operating Travel Angle:180° ±10° (500~2500 us)

Dead Band Width: ≤ 1 us

Mechanical Limit Angle: 360°

Communication Interface: PWM

Motor Type: Coreless motor

Case Material: ABS

Gear Set Material : Metal gear

Weight: 4.7 g

Size: 20.2 × 8.5 × 17.5mm

Length of Connector cable: JR2.54 3 wire 200±5mm (exposed without plug)
