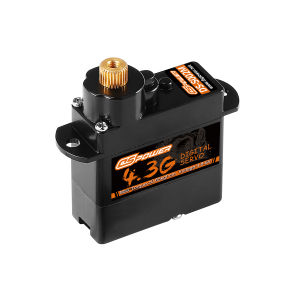

DSpower 2g/3.7g/4.3g/5g Digital Micro Servo Metal Gear JR Plug Coreless Motor for RC Mini Car Plane Fixed-wing Multicopter Toy

DSpower 2g/3.7g/4.3g/5g Digital Micro Servo Metal Gear JR Plug Coreless Motor for RC Mini Car Plane Fixed-wing Multicopter ToyFeatures:High performance digital standardLow noise and long service lifeSmall volume and large torqueSuit for RC car boat helicopter modelSpecifications:Item name:DSpower DS-M005BQuantity: 1pcsOperating Voltage : 3.7~4.2V DCMax. Torque : 3.7V≥0.25kgf·cm ; 4.2V≥0.3kgf·cmNo Load Speed : 3.7V≦0.08sec/60° ; 4.2V≦0.06sec/60°Stall Current:3.7V≦320mA;4.2V≦350mAConsumption Current* (No Load):3.7V ≦50mA ;4.2V≦60mAMax. Operating Travel Angle:180° ±10° (500~2500 us)Dead Band Width: ≤ 1usMechanical Limit Angle: 360°Communication Interface: PWMMotor Type: Coreless motorCase Material: ABSGear Set Material : Metal gearWeight: 3.3g/5.5gSize: 16.7 × 8.2 × 17mmLength of Connector cable: JR2.54 3 wire200±5mm (exposed without plug)Item name: DS-S001MQuantity: 1pcsOperating Voltage : 3.7~4.2V DCMax. Torque : 3.7V≥0.4kgf·cm ; 4.2V≥0.45kgf·cmNo Load Speed : 3.7V≦0.08sec/60° ; 4.2V≦0.06sec/60°Stall Current:3.7V≦330mA;4.2V≦380mAConsumption Current* (No Load):3.7V ≦50mA ;4.2V≦60mAMax. Operating Travel Angle:180° ±10° (500~2500 us)Dead Band Width: ≤ 1 usMechanical Limit Angle: 360°Communication Interface: PWMMotor Type: Coreless motorCase Material: ABSGear Set Material : Metal gearWeight: 4.7 gSize: 20.2 × 8.5 × 17.5mmLength of Connector cable: JR2.54 3 wire 200±5mm (exposed without plug)Item name: DSpower DS-S002MQuantity: 1pcsOperating Voltage : 4.8~6.0V DCMax. Torque : 4.8V≥0.58kgf·cm ; 6.0V≥0.65kgf·cmNo Load Speed : 4.8V≦≤0.15sec/60° ; 6.0V≦≤0.12sec/60°Stall Current:4.8V≦500mA;6.0V≦550mAConsumption Current* (No Load):4.8V ≦80mA ;6.0V≦90mAMax. Operating Travel Angle:180°±10°(500~2500μs)Dead Band Width: ≤ 1 usMechanical Limit Angle: 360°Communication Interface: PWMMotor Type: Coreless motorCase Material: ABSGear Set Material : Metal gearWeight: 6.9 gSize: 27.4 × 8.5 × 22.3mmLength of Connector cable: JR2.543 wire 200±5mm (exposed without plug)Item name: DSpower DS-S003MQuantity: 1pcsOperating Voltage : 4.8~6.0V DCMax. Torque : 4.8V≥0.80kgf·cm ; 6.0V≥0.85kgf·cmNo Load Speed : 4.8V≤0.08sec/60°; 6.0V≤0.07sec/60°Stall Current:4.8V≦800mA;6.0V≦950mAConsumption Current* (No Load):4.8V ≦100mA ;6.0V≦110mAMax. Operating Travel Angle:90°±10°(1000~2000μs)Dead Band Width: ≤ 1 usMechanical Limit Angle: 210°Communication Interface: PWMMotor Type: Coreless motorCase Material: ABSGear Set Material : Metal gearWeight: 5.9gSize: 20 × 11.5 × 21.3mmLength of Connector cable: JR2.54 3 wire 200±5mm (exposed without plug)Package included:1 * 2G/3G/4.3G/5G Metal Gear Digital Servo (Optional)1 * Servo Arm AccessoriesNote:1.Due to the difference between different monitors,the picture may not reflect the actual color of the item. We guarantee the style is the same as shown in the pictures.2.Due to the manual measurement and different measurement methods, please allow 1-3mm deviation.make sure you do not mind before you bid.Thanks!
