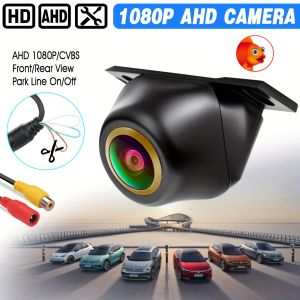

AHD 1080P Backup Camera with Fisheye Golden Lens AHD/CVBS Switchable Parking Guide Lines for Cars SUVs RVs Vans Pickups

Signal Format Compatibility:1.AHD Signal: Ensure your car monitor supports AHD signals. If it doesn’t, For Switch to CVBS and restart the camera’s power.2.AHD and CVBS For Switch: If your vehicle display does not support AHD, cut the orange loop to For Switch to the CVBS signal, then restart the camera’s power. Wire Functions:Orange Wire: Default is AHD signal. To For Switch to CVBS, cut the wire.Green Wire: Default is Mirror mode. To For Switch to Non-mirror, cut the wire.White Wire: Default is Guideline ON. To turn off the guideline, cut the wire.Note: After cutting any wire, reconnect the power and restart the devi for the changes to take effect. No Signal or Black Screen on Display?1.Check Signal Format: Ensure the correct signal format (AHD or CVBS) is selected based on your monitor’s compatibility.2.Verify Connections: Make sure the red trigger wire is connected to the reverse light and the reverse-in cable on the monitor.3.AUX-IN Option: If your monitor supports AUX-IN, you can connect the camera to the AUX-IN port. Selecting the wrong signal standard (like PAL or NTSC) may cause a gray and white screen.NTSC is used for CVBS cameras.PAL is used for AHD 1080P cameras.Please choose the correct signal standard and restart the camera’s power.
