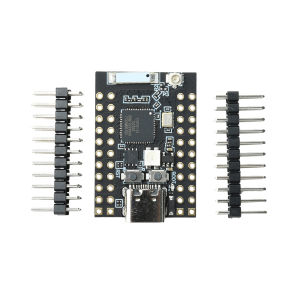

Aideepen | ESP32-S3-N16R8 Development Board WiFi Bluetooth 5.0 Dual Core MCU Module with Type C Interface for IoT Projects AI Support

Features:1. Uses the ESP32S3 dual-core chip, clocked at up to 240 MHz, with support for AI development2. 16 MB Flash + 8 MB PSRAM for ample storage, ensuring smoother operation3. Wi-Fi + Bluetooth 5.0, with support for Mesh and multiple wireless operating modes4. Extensive peripheral interfaces for connecting cameras, LCDs, sensors, and other accessories5. Suitable for IoT projects such as smart home devices, wearables, and network camerasProduct Specifications:Operating Voltage: 4.5–6 VOperating Current: Average: 300 mAMemory: N16R8: 16 Mbit Flash, 8 Mbit SPRAMOn-board Clock: 40 MHz crystal oscillator, 32 kHz crystal oscillatorOperating Temperature Range: -40°C to +85°Module Dimensions: 32 mm × 22.4 mm × 4 mmChip Features:Built-in ESP32-S3R8 chip, Xtensa dual-core 32-bit LX7 microprocessor, supporting clock frequencies up to 240 MHzOperating voltage: 4.5 V to 6 V384 KB ROM, 512 KB SRAM, 16 KB RTC SRAMFlash: up to 16 MB (default); PSRAM: up to 8 MB (default)Peripherals: PWM, I2C, UART, SPI, SDIO, IrDAWi-Fi Features:802.11 b/g/nData rates up to 150 Mbps in 802.11n modeSupports A-MPDU and A-MSDU aggregationMaximum output power of +18 dBm in 802.11b modeSupports STA/AP/STA+AP operating modesOperating channel center frequency range: 2412–2484 MHzBluetooth Features:Bluetooth Low Energy (Bluetooth LE): BT 5, BT meshSupported data rates: 125 Kbps, 500 Kbps, 1 Mbps, 2 MbpsAdvertising ExtensionsMultiple Advertisement SetsChannel Selection Algorithm #2Module Peripherals:GPIO, SPI, LCD, Camera Interface, UART, I2C, I2S, Infrared Remote Control, Pulse Counter, LED PWM, USB 1.1 OTG, USB Serial/JTAG Controller, MCPWM, SDIO Host Interface, GDMA, TWAI® Controller (ISO 11898-1 compatible), ADC, Touch Sensor, Temperature Sensor, Timer, and WatchdogProduct List:1x Development Board2x Pin Header
