Safety Infrared Detector Garage Gate Door Safety Infrared Photocell Photoelectric Beam Sensor For Automatic Gate DC9-50V/AC6-36V

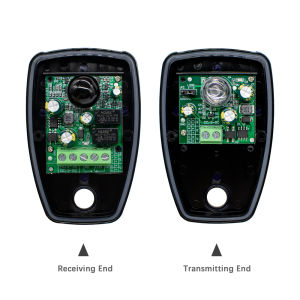

Safety Infrared Detector Garage Gate Door Safety Infrared Photocell Photoelectric Beam Sensor For Automatic Gate DC9-50V/AC6-36VTechnical ParametersTechnology Type: InfraredDetection Range: Nominal 40 meters. The effective distance may decrease to 30% (approx. 12 meters) under harsh weather such as rainy and dusty environments.Power Supply Voltage: DC 9-50V or AC 6-36V. Adopting wide voltage design for great adaptability.Operating Wavelength: 940nm (typical infrared wavelength)Operating Current: Receiver (RX): 35mA; Transmitter (TX): 25mAOperating Temperature: -20℃ to 70℃Relay Output: Max current 2A @ 24VDC, applicable to linkage with alarm control panels or other equipment.Dimensions: 85 x 55 x 30 mmMounting MethodFix the mounting bracket on both sides of gate/door with screws;Install TX transmitter and RX receiver separately on two opposite brackets;Adjust angle to align TX and RX infrared window to ensure smooth signal reception;Fix the sensor tightly to avoid shaking caused by wind or vibration.Sensor body size reference: 65.40mm × 30.00mm mounting reservedWiring GuideTX = Transmitter connection terminalRX = Receiver connection terminalConnect positive and negative power wires to matching terminals of TX & RX according to gate machine wiring diagram, no complex circuit transformation required, plug and play after correct wiring.Application Scenarios✅ Automatic swing gate / sliding gate / retractable gate✅ Garage rolling door, industrial automatic door✅ Parking lot barrier gate safety protection✅ Villa, factory, community perimeter anti-theft alarm system✅ Warehouse, logistics channel safety induction
