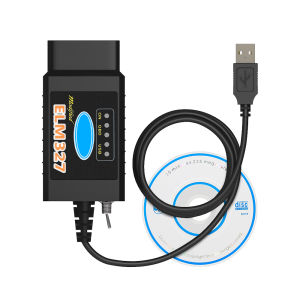

ELM327 V1.5 USB OBD2 Scanner with Switch FT232RL PIC18F25K80 HS/MS-CAN for Ford FORScan Diagnostic Tool Car Diagnostic Scanner

ELM327 V1.5 USB OBD2 Scanner with Switch FT232RL PIC18F25K80 HS/MS-CAN for Ford FORScan Diagnostic Tool Car Diagnostic ScannerELM327 USB With Switch Diagnostic Cable Top 4 Reasons to Get Plastic ELM327 USB With Switch Diagnostic Cable:1: Latest ELM327 USB With Switch includes PIC18F25K80 and FT232RL.2: Manufactured modification to include a switch to connect to different CAN buses, MS CAN bus and HS CAN bus.3: Designed for FORScan software, compatible with software venders; for FORScan, for Elmconfig, for FF2 and for FoCCCus, plus more.4: Support Windows 7 and WIN10.OBDII Protocols:SAE J1850 PWM (41.6Kbaud)SAE J1850 VPW (10.4Kbaud)ISO9141-2 (5 baud init, 10.4Kbaud)ISO14230-4 KWP (5 baud init, 10.4 Kbaud)ISO14230-4 KWP (fast init, 10.4 Kbaud)ISO15765-4 CAN (11bit ID, 500 Kbaud)ISO15765-4 CAN (29bit ID, 500 Kbaud)ISO15765-4 CAN (11bit ID, 250 Kbaud)ISO15765-4 CAN (29bit ID, 250 Kbaud)SAE J1939 CAN (29bit ID, 250Kbaud)CAN (11bit ID, 125Kbaud)CAN (11bit ID, 50*Kbaud)Product DescriptionIntroduction:With the cable and the one of the supported software vendors you can detected modules which are not visible for regularOBD2 scanners. This includes showing you trouble codes, PIDs, running tests and services procedures which are never displayed by other OBD2 scanners and a standard ELM327 USB With Switch.Basic Features:Reset fault /trouble codes / parameter ids (PIDs)Change car configuration dataRun testsServices proceduresProgram certain modelsPin Configurations:Switch position one: HS CAN - Occupies pins 6 and 14Switch position two: MS CAN - Occupies pins 3 and 11Supported Software:For FORScanFor Elmconfig(Just support Baud rate:34800,pls check before place order)For FoCCCusFor FF2Plus moreHidden function Support car list:2006-2016 classical for Focus2012-2015 new for Focus2013-2015 for KugaPlease note that many models (approximately since 2003-2004) are equipped with MS CAN bus, in addition to the regular HS CAN bus. In contrast to HS CAN bus, MS CAN bus is not supported by the stock ELM327 USB With Switch, because MS CAN is a manufacturer-specific solution and located on non-OBD2 pins. This ELM327 has been modified to allow it to implement the MS CAN bus.ELM327 USB With Switch supports HS CAN from the stock, because for HS CAN completely matches to the OBD2 standards. It occupies pins 6 and 14. MS CAN bus occupies pins 3 and 11.Supported Vehicles:Many vehicles that can be addressed using an ELM via an OBDII connector.Packing List:1 x ELM327 USB With Switch Diagnostic Cable1 x CD
