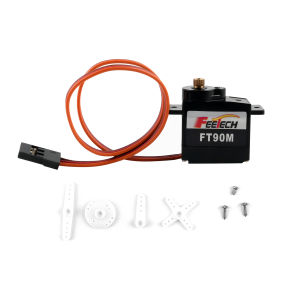

Feetech FT90M 6V 2.3kg.cm Digital Mini Servo 280 Degree Metal Gear Micro Servo for RC Car Airplane Automatic Curtain/Smart Lock

1/2/4PCS Feetech FT90M 6V 2.3kg.cm Digital Servo 280 Degree Metal Gear Micro Servo for RC Car Airplane Automatic Curtain/Smart LockModel：FT90M-C001Product Name:6V 2.3kg. cm Digital ServoStorage Temperature Range-30℃～80℃Operating Temperature Range:-15℃～70℃Size:A：23.2mm B：12.1mm C:25.5mmWeight:13.5± 1gGear type:Metal GearLimit angle:NO limitBearing:NOHorn gear spline:20T/3.95mmHorn type:Plastic,POMCase:PC plasticConnector wire:200mmMotor:core motorOperating Voltage Range:3-8.4VIdle current (atstopped)6mA@6VNo load speed:0.1sec/ 60degree @6VRunnig current(at no load) :150mA@6VPeak stall torque:2.3kg.cm@6VRated torque:0.76kg.cm@6VStall current:1000mA@6VCommand signal:Pulse width modificationAmplifier typeDigital comparatorPulse width range1000~2000usecStop position1500 μsecRunning degree280° (at 1000→2000μsec)Dead band width≤4 μsecRotating directionCounterclockwise(at 1500 →2000 μsec)
