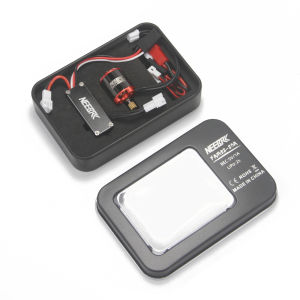

NEEBRC 1212 5000KV Outrunner Brushless Motor 25A ESC Combo for 1/24 1/30 RC Mini Crawler Car Axial SCX30 Ford SCX24 Upgrade Part

NEEBRC 1212 5000KV Outrunner Brushless Motor 25A ESC Combo for 1/24 1/30 RC Mini Crawler Car Axial SCX30 Ford SCX24 Upgrade PartFeatures:1-Simulated FOC,extremely excellent low-speed linearity and powerfulow-speed torque2-Parameter adjusters and software can be used to adjust and adapt tovarious types of motors3-Low voltage protection4-Metal case.5-High integration, small size, easy to installSpecifications:Item Name:FAM32-25A 25A Brushless ESCColor: BlackRated Voltage Range:2S Li-POCurrent(A): Continuous/Peak Current: 25A/60ABEC Output: 5V/1AMotor Type: 1212/1224/1621 0uter rotor MotorsCompatible Vehicles:1/24 1/28 1/30 Climbing/Off Road VehicleDimensions: 35128mmWeight: 8.1gUsage:1) Connect the power supply, motor, and receiver correctly according to the instructions in the diagram.2) Connect the motor and the three wires of the electric controller in any order. If the throttle is reversed, switchthe two wires for connection.3) Adjust the throttle center position by adjusting the throttle fine adjustment knob and making a few long beeps tothe motor, This is the throttle center position.4) when the throttle adiustment is not in the neutral position, there is no response to the throttle during operation5) "he transmitter throttle adiustment 0 value is only a reference center, sometimes it may deviate to the left or right.Specifications:Item Name:1212 5000KV Brushless MotorColor: BlackRated Voltage Range:1S-3S Li-PO, 7.4VNo load current (A/7.4V): ≤0.9ANo load speed (rpm/7.4V): 37000 ± 5%Motor internal resistance (m Ω) (ambient temperature: 25 ℃) : 150m Ω± 3%KV value: 5000KVNumber of slots: 9N12PWhole machine weight (g): 15.5gWhole machine withstand voltage (DC): DC500V (3S)Whole machine balance (mg): ≤ 15mgSteering (end view of shaft extension): clockwise/counterclockwiseOperating environment temperature (℃): -10 ℃ -65 ℃Storage temperature (℃): -10 ℃ -50 ℃Storage humidity (%): ≤ 85%Gear Number: 11TOverall appearance (mm): ≤ 0.1Overall height(mm): 27.5+0.2Motor height (mm): 20.6+0.2Outer diameter of the whole machine (mm): R8.5±0.1Installation hole position (mm): 2-M2 hole spacing 10mm, 2-M2 hole spacing 12.5mmWire and wire sequence: 26AWG silicone wireLength of outgoing line (mm): 85 ± 5mm (including 2.0 banana plug)
