PCIe 5.0 X16 GPU Riser Kit Dual MCIO 8i Expansion Adapter Backplane Cable for Server Workstation Computer PC System

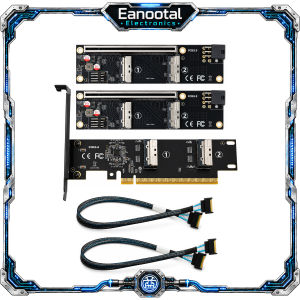

Product Name: MCIO PCIe 5.0 to PCIe x16 Adapter KitThis product is a high-speed MCIO 5.0 to PCIe x16 extension adapter kit, designed for 2U servers, industrial computers, workstation chassis, compact PC builds and PCIe expansion applications.It is mainly used to extend or transfer PCIe x16 signals through MCIO cables, allowing PCIe x16 devices to be installed in a different position inside the chassis.Package Options: 1.MCIO 5.0 Cable Total length: 500 mm / 19.69 inch High-speed MCIO cable for PCIe signal extension Suitable for connecting MCIO adapter cards and PCIe x16 backplanes 2.MCIO to PCIe x16 Backplane Size: 145 x 37 mm / 5.71 x 1.46 inch Converts MCIO interface to PCIe x16 slot Used to install PCIe x16 devices such as graphics cards, network cards, capture cards or other PCIe expansion cards 3.MCIO to PCIe x16 2U Adapter Card Size: 150 x 120 mm / 5.91 x 4.72 inch Designed for 2U server and compact chassis installation Used as the main adapter card for MCIO to PCIe x16 expansion 4.Complete MCIO 5.0 Adapter Kit Includes: 1 x MCIO to PCIe x16 2U Adapter Card 2 x MCIO to PCIe x16 Backplanes 2 x MCIO 5.0 Cables, 500 mm Suitable for users who need a complete MCIO PCIe x16 extension solution Main Features: MCIO 5.0 high-speed interface Supports PCIe x16 signal extension Suitable for PCIe Gen5 / Gen4 / Gen3 devices, depending on your motherboard, CPU, BIOS and PCIe device support No driver required, plug and play after correct installation Compact structure, suitable for 2U server chassis and limited-space builds Useful for GPU extension, PCIe expansion card relocation, server internal wiring and industrial computer applications Stable connection for high-speed PCIe signal transmission when used with compatible hardware Application Scenarios: 2U server GPU extension PCIe x16 device relocation Workstation internal PCIe expansion Industrial computer PCIe signal transfer Compact chassis installation Server GPU, network card, RAID card, capture card or other PCIe card extension Important Compatibility Notice: This product is for PCIe signal extension via MCIO interface. It does not convert SATA, SAS or other non-PCIe signals. Please confirm that your motherboard or host device MCIO interface supports PCIe signal output before purchase. Some MCIO interfaces may have different pin definitions and may not be compatible. If you use two PCIe x16 backplanes at the same time, the motherboard may need to support PCIe bifurcation, such as x8 + x8 mode. Please check your motherboard BIOS before purchase. The actual speed depends on the lowest PCIe generation among the motherboard, CPU, adapter card, cable and PCIe device. For example, if one device only supports PCIe 4.0, the system will run at PCIe 4.0 speed even when using a PCIe 5.0 cable. For high-power graphics cards, please connect the external GPU power cable correctly. Do not rely only on the PCIe slot power. This product does not support hot plugging. Please turn off the computer power before installation or removal. Please avoid excessive bending, pulling or twisting of the MCIO cable. High-speed PCIe cables require careful installation to maintain stable signal transmission. If the device is not detected after installation, please check the following: Confirm the MCIO cable direction and connection Check whether the motherboard supports PCIe bifurcation Try setting BIOS PCIe speed to Gen4 or Gen3 for compatibility testing Confirm that the PCIe device and power supply are working correctly Reinsert the adapter card, backplane and cable Please Note:This product is suitable for professional users with knowledge of PCIe expansion, server hardware or industrial computer installation. Please confirm your device interface, PCIe lane mode and chassis space before ordering.Package Includes:Complete Kit:1 x MCIO to PCIe x16 2U Adapter Card2 x MCIO to PCIe x16 Backplanes2 x MCIO 5.0 Cables, 500 mmSingle product options may include only the cable, only the backplane or only the adapter card. Please choose the correct option before placing an order.
