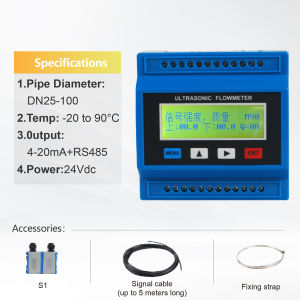

TUF-2000M Clamp-On Ultrasonic Flow Meter DN25-6000mm Split Type Wall Mounted Non-Invasive Industrial Water Flow Meter

NOTE:This product does not include coupling agent due to international shipping restrictions. The coupling agent is a paste-like substance that may cause shipping rejection by logistics companies.However, the coupling agent is essential for the proper operation of the ultrasonic flowmeter. It eliminates air gaps between the sensor probe and the pipe surface, ensuring effective ultrasonic signal transmission and accurate measurements.You may use locally available alternatives such as industrial grease, petroleum jelly, or No.2 lithium-based grease.Modular ultrasonic flowmeter can be paired with three types of probes: the S-type for DN25-100 pipes, the M-type for DN50-700 pipes, and the L-type for DN300-6000 pipes. When purchasing, please ensure that the pipe diameter to be measured matches the appropriate probe!Although S, M, and L probes can all be connected to the same host, once a probe is fixed to a pipeline, it cannot be moved or detached. Therefore, it is recommended to pair each type of probe with a dedicated host. Using one host for all three types of probes is not advised.Ultrasonic flowmeter on the installation point requirements1. the measuring point to be measured liquid needs to be full tube,single medium.2.the measurement pipe needs to be a dense medium, need tobe able to conduct ultrasonic, conventional sound pipe: stainlesssteel, carbon steel, cast iron, PVC, glass fiber reinforced plasticet，etc.3. the measuring point needs stable flow, can not appear a large number of bubbles, whirlpool flow, otherwise affect themeasurement.4. the installation point as far as possible away from the high-power inverter, high-voltage power grid, these power ortransmission equipment will produce strong high-frequencyinterference, so as not to affect the measurement accuracyOptional transducer◆ TS-1 clamp-on type transducer, pipe size from DN15-100mm◆ TM-1 clamp-on type transducer, pipe size from DN50-1000mm◆ TL-1 clamp-on type transducer, pipe size from DN300-6000mmTypical applicationThe wall-mounting flow meter can be applied to a wide range of pipe flow measurements. Applicable liquids include pure liquids as well as liquid with small quantity of tiny particles. Examples are: ★Water (hot water, chilled water, city water, sea water, waste water, etc.); ★ Sewage with small particle content; ★ Oil (crude oil, lubricating oil, diesel oil, fuel oil, etc.); ★ Chemicals (alcohol, acids, etc.); ★ Plant effluent; ★ Beverage, liquid food; ★ Ultra-pure liquids; ★ Solvents and other liquids SpecificationsItemsSpecificationsMain unitAccuracyBetter than ±1%RepeatabilityBetter than 0.2%PrincipleTransit-time measuring principleMeasurementPeriod500msDisplayLCD with backlight,display accumulated flow/heat, instantaneous flow/heat, velocity, time etc.OutputAnalogue output: 4-20mA or 0-20mA current output. Impedance 0∼1kW. Accuracy 0.1%.OCT output: Frequency signal (1~9999HZ)Relay output: over 20 source signal (no signal, reverse flow etc.)RS485 serial portInputThree analogue inputThree-wire PT100 resistor input (optional)Other functionsAutomatically record the totaliser data of the last 64 days / 64 months / 5 years; The power-on time and corresponding flow rate of the last 64 power on and off events. Allow manual or automatic flow loss compensation The instrument working status of the last 64 days pipematerialSteel, stainless steel, cast iron, cement pipe, copper, PVC, aluminum, FRP etc. Liner is allowedSize15-6000mmStraightpipe sectionIn the upstream it must be beyond 10D, in the downstream it must be beyond 5D, in the upstream the length must be beyond 30D from the access of the pump. (D stands for pipe diameter)LiquidTypesWater, sea water, industrial sewage,acid & alkali liquid, alcohol, beer, all kinds of oils which can transmit ultrasonic single uniform liquidTemperatureStandard: -30˚C - 90˚C ，High-temperature：-30˚C - 160˚CTurbidityLess than 10000ppm, with a little bubbleFlow DirectionBi-directional measuring, net flow/heat measuringEnvironmentTemperatureMain Unit: -30˚C - 80˚CTransducer:-40℃-110℃, Temperature transducer: select on enquiryHumidityMain Unit: 85% RHTransducer: water-immersible, water depth less than 3mCableTwisted Pair Line, standard length of 20m, can be extended to 500m (not recommended); Contact the manufacturer for longer cable requirement.RS-485 interface, transmission distance up to 1000mPower SupplyAC220V or DC24VPower ConsumptionLess than 1.5WProtocolsMODBUS, M-BUS, Fuji extended protocol and other factory protocol4. FAQQ: How do I select the correct sensor type?A: Choose based on pipe size and measurement needs: Clamp-on for easy installation, Insertion for larger pipes, and Inline for highest stability.Q: Can this device operate under high temperatures?A: Yes, the high-temperature version supports up to 160°C. Please specify when ordering.Q: How can I get technical support?A: For any questions or assistance, please contact our customer service team.
