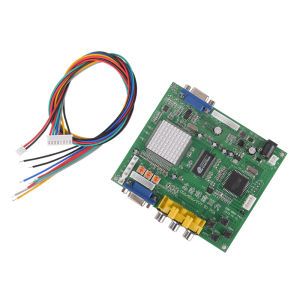

JETTING | 【Arcade Game RGB/CGA/EGA/YUV To VGA HD Video Converter Board HD9800/GBS8200】

Features: Latest & official GBS8200 HD-Converter Board. Supports CGA/EGA/VGA/YUV Component Signal Input Supports VGA Output (640 x 480, 800 x 600, 1024 x 768, 1360 x 768) CGA/EGA/VGA signal auto scan (15KHz, 24KHz, 31KHz) YUV Component signal auto scan (480i, 576i, 720i, 1080i, 480p, 576p, 720p, 1080p) On Screen Display (English and Chinese) Supports image position control & image zoom control True digital 24-bit A/D converter for true 16.7-million color conversion. Supports ALL types of VGA monitors (CRT, LCD, PDP, Projector, etc) Specifications: Input Power: 5VDC +/- 0.5v (2A) Input signal: CGA/EGA 14.5kHz - 16.5kHz 23.5kHz - 25.5kHz 30.5kHz - 32.5kHz RGBHV: 30.5kHz - 32.5kHz VGA: 30.5kHz - 32.5kHz Ypbpr: 480p,576p,720p,1080p Ycbcr: 480i,576i,720i,1080i Output signal: VGA:640480,800600,1024768,1360768 User controls: Input Switch, Image Zoom, Image Position, Output Resolution ,RGB gain adjust. ¡°MENU¡± open OSD menu, and enter. ¡°UP¡± up and increase. ¡°DOWN/AUTO¡± down and reduce. Press this key: auto scan CGA/EGA signal Press this key over 5 second and release: reset system (this operation is invalid when you open OSD menu) ¡°SW¡± switch input signal Ypbpr/RGBS/RGBHV. (this operation is invalid when you open OSD menu) ¡°Clamp sp¡± & ¡°Clamp¡± please don¡¯t adjust this button, except the monitor has black item or picture discoloration. For more functions control, please look at OSD to operate. No signal on you monitor Please check the input and output cables, make sure all cables are connected. And make sure power is on. The monitor says ¡°No signal¡± Please press ¡°SW¡± to switch input signal. Input not supports When your monitor displays ¡°input not supports¡±, maybe you need change to low resolution. Please press ¡°DOWN/AUTO¡± over 5 second and release. Reset resolution to 800600. Image not full on you screen Please enter menu to adjust image position and zoom. Image shake or freeze Please press ¡°DOWN/AUTO¡±, system will auto scan input signal and restore image. Have black item on screen, or all screen too black, or picture discoloration Please adjust ¡°Clamp sp¡± and ¡°Clamp st¡±, please keep ¡°Clamp st¡± less than ¡°Clamp sp¡±. We suggest ¡°Clamp st¡± SET ¡°03¡± , ¡°Clamp sp¡± SET ¡°04¡±. Image color not right Please adjust RGB VR. Color:Green Size:117100*20 mm Cable length: 50cm Package included: 1pc x Converter board GBS8200 1pc x 2P power supply wire 1pc x 8P signal wire
