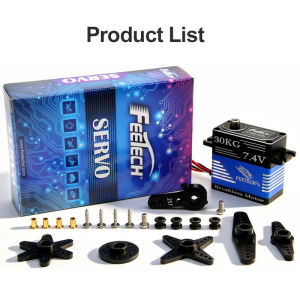

Feetech 7.4V 30kg Titanium Gear Metal FU8830BL Brushless CAN Bus Servo for RC Airplanes Crawler Cars Industrial Robotic Grippers

ParameterModel：FU-8830-C001 Storage Temperature Range：-30℃～80℃ Operating Temperature Range：-20℃～60℃ Size: 40x20x39mm Weight: 86.4±2g Gear type: Titanium Limit angle: NO Bearing: Ball bearings Horn gear spline：25T/5.9mm Gear Ratio：1/241 Case：Aluminum Connector wire：30±1CM Motor：Brushless Motor Operating Voltage Range：6-8.4V Idle current (atstopped)：55mA@7.4V No load speed：0.083sec/60°(120RPM)@7.4V Runnig current(at no load)：420mA@7.4V Peak stall torque：34.5kg.cm@7.4V Rated torque：11.5kg.cm@7.4V Command signal：Pulse width modulation Communication Protocol：UAVCAN Control System Type：Digital comparator Pulse width range：500~2500 μ sec Stop position：1500 μ sec Running degree：180±5°(at 500→2500μsec) Dead band width：≤4 μ sec Rotating direction：Counterclockwise(1500→2000 μsec) Waterproof performance：IP66
