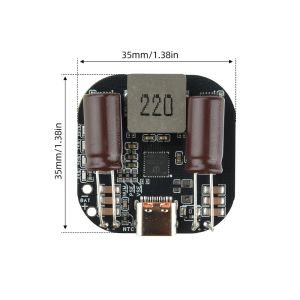

Kirilgu IP2366 2-6S PD140W Fast Charging Module Buck Converter for Lithium-Ion Battery Charging and Discharing Z1H5K

.product-description {position: ;max-width: 944.0px;overflow: hidden;} .product-description span {max-width: 100.0%;word-break: break-word;} .product-description img {max-width: 100.0%;vertical-align: middle;} .product-description p {margin: 0;line-height: inherit;} .product-description pre {white-space: pre;white-space: pre-wrap;word-wrap: break-word;} .product-description .video-container-detail {justify-content: center;align-items: center;} .product-description div {} .product-description ul {list-style-type: disc;} .product-description ol {list-style-type: decimal;} .product-description ul, .product-description ol {margin-block-start: 1.0em;margin-block-end: 1.0em;margin-inline-start: 0.0px;margin-inline-end: 0.0px;padding-inline-start: 40.0px;} Features:1. High-power 140W bidirectional capability for efficient, rapid charging and discharging.2. Compatible with 2-6S lithium batteries, including LiFePO4, ternary lithium, and polymer battery chemistries.3. Comprehensive protocol support, including PD3.1, QC3.0+, FCP, AFC, and SCP.4. Component-free PCB backside allows for flush mounting of a heatsink, ensuring effective thermal management.5. Multi-layered safety protections: safeguards against over-voltage, under-voltage, over-current, over-temperature, short-circuit, over-charge, and over-discharge conditions.Product IntroductionThe core controller used in this product is the IP2366, a highly integrated charge/discharge management chip for 2-6S lithium batteries. Its key advantage lies in the integration of 140W high-power charging/discharging, multiple fast-charging protocols (such as PD3.1), and synchronous buck-boost control. The chip supports voltage outputs at 5V, 9V, 12V, 15V, 20V, and 28V levels, achieving a maximum charge/discharge power of 28V/5A (140W), and is fully compatible with 2-6S series-connected LiFePO4, ternary lithium, and polymer battery packs. Product SpecificationsVoltage: Supports 2-6S LiFePO4, Ternary Lithium, and Polymer battery packsInterface: Type-CInterface Power: 140W4 battery level indicators (displaying charge/discharge status and current battery level)Integrated FCP input/output fast charging protocolsIntegrated AFC input/output fast charging protocolsIntegrated SCP input/output fast charging protocolsIntegrated DRP Try.SRC protocols and PD3.1 input/output fast charging protocolsIntegrated QC2.0/QC3.0/QC3.0+ output fast charging protocolsSupports voltage levels: 5V, 9V, 12V, 15V, 20V, 28VMaximum support: 28V/5A (140W)Supports charging and discharging of 2-6S series LiFePO4, Ternary Lithium, and Polymer battery packsInput protection: Over-voltage and under-voltage protectionOutput protection: Over-current and short-circuit protectionBattery protection: Over-charge, over-discharge, and over-current protectionTemperature protection: IC over-temperature protection; NTC temperature monitoring for battery charging/dischargingESD protection: ESD 4kV; input pins (including CC1/CC2) withstand voltage up to 30VRelationship between single-cell full-charge voltage and corresponding resistance:3.65V corresponds to 3.6kΩ4.1V corresponds to 6.2kΩ4.2V corresponds to 9.1kΩ4.35V corresponds to 13kΩ4.4V corresponds to 18kΩ4.2V corresponds to 27kΩRelationship between power and corresponding resistance:30W corresponds to 3.6kΩ45W corresponds to 6.2kΩ60W corresponds to 9.1kΩ65W corresponds to 13kΩ100W corresponds to 18kΩ140W corresponds to 27kΩRelationship between number of series-connected cells and corresponding resistance:2 cells in series correspond to 3.6kΩ3 cells in series correspond to 6.2kΩ4 cells in series correspond to 9.1kΩ5 cells in series correspond to 13kΩ6 cells in series correspond to 18kΩPackage ListModule x1
