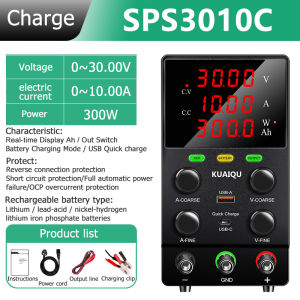

【24-hour delivery】KUAIQU Smart Charging Adjustable DC Power Supply 30V 10A with OCP Buzzer LED Digital Display 12V 24V 48V 72V 100V Switching Regulated Power Supply for battery charging battery activation plating phone repair SPS3010C

【Charge】SPS--C Series[How to set charging voltage, current and precautions]1. Calculation of common battery charging current and charging voltage:Charging voltage setting = 1.15 * battery rated voltageCharging current setting = 0.1c ~ 1c ("C" is the battery capacity)(The actual charging voltage specification is subject to the battery manufacturer's regulations)2: Series batteryBattery charging voltage = nominal voltage 1.15-1.2X (the number of series connections is determined by the upper limit of power supply voltage of 30V).Lead-acid battery-current: 0.1-0.3C, 2V single unit, supporting 12 strings at most, nominal voltage 24V, full voltage 28.8VTernary lithium battery-current: 0.3-1C, 3.7V single battery, supporting up to 7 strings, nominal voltage 25.9V, full charge voltage 30V (limit).Lithium iron phosphate battery-current: 0.3-0.5C, 3.2V single section, supporting up to 8 strings, nominal voltage 25.6, full charge voltage, 30V (limit).Total voltage (V)= single-section voltage × number of series connections, total capacity (Ah)= single-section capacity × number of parallel connections, and total charging current (A)= single-section recommended current (C× capacity) × number of parallel connections; Example: Ferrous lithium phosphate single node parameter, 3.2V/20Ah, 8 strings of 25.6V, 5 and 100Ah, 0.3C, 30A.3. Trickle charging: For batteries that have been seriously exhausted (such as batteries that have not been used for a long time), it is necessary to carry out restorative trickle charging. During trickle charging, the charging current should be set to less than 0.1C(C= the total capacity of the battery is calculated in Ah), for example, for a battery with 5Ah, the charging current should be set to 0.5A. When the battery voltage reaches a certain value, switch to 0.2C for standard charging.4: Charging precautions(1) The charging voltage and charging current must be set according to the advice of the original battery manufacturer.(2) Please make sure to work in battery charging mode (press the battery button to turn on the light).(3) Connect the battery correctly, with red corresponding to the positive electrode and black corresponding to the negative electrode. After confirming that everything is correct, press the output button to start charging (please check whether the connection position is correct and the battery is damaged before charging, and then start charging after everything is normal).(4) This product is not a professional charging device. If you use it for a long time, please buy the corresponding special charger.(5) Non-professionals or untrained personnel are prohibited from using it.(6) Please ensure that someone is on duty during charging, and charging is prohibited when leaving.(7) minors are forbidden to use it.5: Recommended selection of power supply voltageThe higher the charging voltage, the more types of batteries that can be charged, the higher the charging current and the faster the charging speed. Therefore, the differences between the four models in our link are as follows:(1)30V 5A 150W: applicable battery: 8 series lithium iron phosphate battery /12 series lead-acid battery /7 series sodium ion battery /7 series ternary lithium battery, which can be charged for 5Ah in one hour.(2)30V 10A 300W: Suitable for batteries: 8 series lithium iron phosphate batteries /12 series lead-acid batteries /7 series sodium ion batteries /7 series ternary lithium batteries, which can be charged for 10Ah per hour.(3)60V 5A 300W: applicable battery: 16 series lithium iron phosphate battery /25 series lead-acid battery /15 series sodium ion battery /14 series ternary lithium battery, which can be charged for 5Ah in one hour.(4)120V 3A 360W: applicable battery: 33 series lithium iron phosphate battery /50 series lead-acid battery /30 series sodium ion battery /28 series ternary lithium battery, which can be charged for 3 hours.[Six major security guarantees]1: Short circuit alarmOCP short-circuit protection: Press the "OCP" button to turn on or off the alarm function of OCP short-circuit protection. When the OCP function is turned on, when the machine detects the short circuit or overcurrent of the external load, it will stop the output and give an alarm, thus effectively protecting the external load. When in the OCP alarm state, press the "Output" button briefly to cancel the alarm. Output switch between power output and shutdown. Press the "Output" button to switch.2. Reverse connection protectionIntelligently identify whether the connection is normal or not. When the connection is wrong, the "BATTERY" yellow light flashes and the output cannot be turned on. After the connection is normal, the "BATTERY" yellow light is always on, and the output key can be turned on normally to prevent the battery or power supply from being damaged due to the connection error.3. Over-current protectionOCP current limit protection, which can be set by user. When the current exceeds the limit, it will give an alarm and immediately cut off the power protection. When the output is short-circuited, it will give a buzzer alarm and display OCP on the screen.4: Overcharge protectionIntelligent chip monitors voltage and current, when the battery is full, the indicator light turns green, and the output is automatically disconnected, so there is no risk of charging, which effectively protects your battery health.5: charging Ah displayThis power supply adds charging Ah display, which can check the battery capacity in real time and realize accurate control of the battery capacity to prevent overcharge and overdischarge, and is suitable for cyclic maintenance of various batteries.6: Over-temperature protectionBuilt-in intelligent temperature control fan automatically turns on heat dissipation when the temperature in the cabinet reaches 50℃, so there is no need to worry about dangerous situations such as overheating of the power supply after long-term use.【Charging function】Turn on the BATTERY function.When the orange light is on, the link is normal. After the output switch is turned on, the battery is charged normally.Flashing orange light indicates wiring error or battery damage.The light turns green to indicate that the battery is fully charged.【Output switch】When using power supply, we sometimes need to switch and set the OUTPUT value of current and voltage, but we often forget to turn off the output, which leads to load damage. To solve this problem, we design the output switch button, which can easily turn off or on the output just by clicking the output button, and the operation is more elegant, convenient and fast.【Double interface charging】We set up USB and USB-C fast charging interfaces for this power supply, which is helpful for fast charging of mobile phones and electronic devices. [OCP/OVP]SPSS Series【OCP】The alarm function of OCP short circuit protection can be enabled or disabled by pressing the "OCP" button briefly. Press and hold the "OCP" button for 3 seconds to enter the OCP setting state. You can use the current adjustment knob to set the current value of OCP. When OCP is enabled, when the external load is short-circuited or overcurrent occurs, an alarm will be given and the machine will stop outputting, thus effectively protecting the external load.Press the OCP button briefly to clear the OCP alarm.【OVP】The OVP overvoltage protection function can be enabled or disabled by short pressing the "OVP" button. Press and hold the "OVP" button for 3 seconds to enter the OVP setting state. You can use the voltage adjustment knob to set the voltage value of OVP. When OVP is enabled, when the load voltage exceeds the set voltage, the machine will stop outputting and give an alarm, effectively protecting the external load.Short press the OVP button to clear the OVP alarm.【Output switch】When using power supply, we sometimes need to switch and set the OUTPUT value of current and voltage, but we often forget to turn off the output, which leads to load damage. To solve this problem, we design the output switch button, which can easily turn off or on the output just by clicking the output button, and the operation is more elegant, convenient and fast.【Four-digit display】This power supply has high resolution of 0.01V and 0.001A, and four-digit real-time display of voltage (V)/current (A)/power (W).【Encoder knob】This power supply uses a high-precision encoder knob, which is different from the traditional potentiometer knob, and can be quickly and accurately adjusted to the required value. By rotating the coarse and fine adjustment buttons and pressing the knob, the number of digits can be switched, and it can be adjusted without actual output, which greatly improves the comfort and safety of use."Temperature control fan"Built-in intelligent temperature control fan automatically turns on heat dissipation when the temperature in the cabinet reaches 50℃, so there is no need to worry about dangerous situations such as overheating of the power supply after long-term use.【knob buzzer/prompt tone】This power supply has a buzzer function. Press and hold the "V-FINE" button for 5 seconds to turn on and off the buzzer, which is convenient for you to adjust and use in different scenes.【USB/USB-C charging port】We set up two fast charging ports, USB and USB-C, for this power supply, which is helpful for fast charging of mobile phones and electronic devices. (Note: it is used in fast charging mode when used alone, and it is used in ordinary charging mode at the same time)【Automatic Constant Pressure and Constant Current CC/CV】The working characteristic of the power supply is constant voltage/constant current automatic conversion type, which can automatically switch between constant voltage and constant current state with the change of load. The intersection between constant voltage mode and constant current mode is called the transition point. For example, if the load makes the power supply work in a constant voltage mode, a constant voltage is output. With the increase of load, the output voltage will remain unchanged and the output current will increase. When the current value reaches the set current limit value, the power supply will automatically switch to the constant current mode. The output current remains stable, and the output voltage decreases proportionally with the further increase of load. The conversion between constant voltage and constant current is indicated by the LED on the front panel. 【Start】SPS seriesRemarkable characteristics, product characteristics【High Precision, Low Ripple, LED Display, Auto Switch C.C/C.V Mode】NICE-POWER 30V 10A DC power supply is a professional power supply regulator with high accuracy of 0.01V and 0.001A, low ripple of DC power supply. The backlit 4-digits LED display has the advantage of high resolution, which can be easily viewed even if you are in low-light conditions . Adjustable power supply has C.V/C.C indicator, constant voltage and constant current mode can automatically complete the switch.【CE & FCC Certification, Multiple Protection, Various Application】Lab power supplies have passed CE & FCC Certification. 30V DC power supply has multiple protections: overvoltage protection, overcurrent protection, overheating protection, over power protection, short circuit protection, leakage protection. DC power supply is suitable for LiFePO4 battery charging, arduino project, anodizing, laboratories, schools, electronic maintenance , electrolysis, electroplating, lamp test, DIY, etc.【Stable Vertical Design, Lightweight and Portable】Bench power supply adopts stable vertical design, DC power supply has shock absorber rubber feet at the bottom, so it will be safer and more stable during use. DC power supply is very light and portable, with a size of only 3.3 x 9.4 x 6.1 inches and a weight of only 2.6 pounds. You can easily take the DC power supply to work.【5V/2A USB Port, Intelligent Cooling Fan, High-quality Materials】The DC power supply is equipped with a 5V/2A USB port, you can charge your mobile phone, tablet or other devices. When the working temperature of the DC power supply exceeds 122℉/50℃, the cooling fan is turned on intelligently, which can effectively dissipate heat. , Reduce working noise and prolong the service life of equipment. High-quality materials make our DC power supply more durable.
