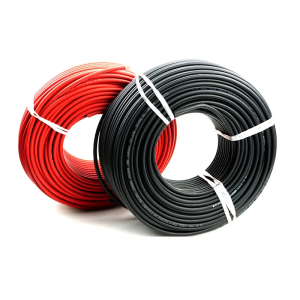

Solar Power Cable 4mm2 12AWG Wire PV Photovoltaic Cable TÜV TUV Cable For PV Panels Connection Red Black Jacket 5/10/20m

High Performance 4/6/2.5mm² Solar PV Cable 12/14/10AWG Solar PV Cable Red And Black ColorApplicationSolar Cable used for interconnection wiring of grounded and ungrounded photovolatic power systems.Cable designConductor: fine wire strands of tinned copper wires, acccording IEC 60228, Class 5Insulation: halogen free PE, electron beam cross-linked. Color: BlackOuter jacket: halogen free and flame retardant PE, eletron beam cross-linked resistance against water, UV resistant. Jacket Color: Black or RedTemperature rangeMax. temperature at conductor-40℃~120℃Temperature range-40℃~90℃ (min. 25 years)Electrical characteristicsNominal voltageU0/UAC 600/1000V, DC 900/1500VMat.DC voltage1800V (conductor-conductor,non earthed system,circuit not under load)AC-test-voltage6.5KVMin. Surface resistance of sheath10^9ΩMin.bending radius5 x cable diameterOther testsaccorfing EN 50395Mechanical CharacteristicsMin.bending radius5 x cable diameterTensile strength and elongationaccording EN 60811-1-1Cold Bendingaccording EN 60811-1-4Thermal endurance propertiesaccording EN60216-2Environmental characteristicsHalogen freeaccording TUV 2PfG 1169/08.2007 Annex BOzone resistanceaccording EN 50396UV resistanceaccording HD 605/A1Flame characteristicsaccording IEC 60332-1-2Product DescriptionSize(mm² )Conductor dia.N/mmInsulationdia.(mm)CorecolorNominalJacketdia.(mm)RatedCurrentat60℃(A)JacketColor2.550/0.253.65Black5.2541Black2.550/0.253.65Black5.2541Red4.056/0.304.20Black6.0555Black4.056/0.304.20Black6.0555Red6.084/0.304.90Black6.5070Black6.084/0.304.90Black6.5070Red
