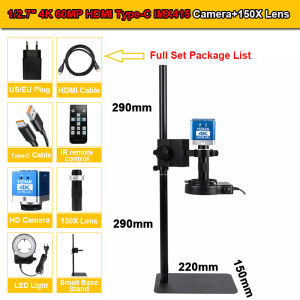

YiZhan | YIZHAN Small Base Digital Microscope for Soldering 150X Adjustabe Lens 4K/60MP/48MP/13MP HD Camera Tools For Phone PCB Repair

PhotoModelXVH2003XHU4002XHU4012XH3007With MouseXH3011SensorIMX323IMX327IMX415IMX335IMX678Photosensitivesize1/3"1/2.8"1/2.7"1/2.8"1/1.8"ImagingEffectHDHDUHDHDUHDInterfaceHDMIVGAHDMIUSBHDMIType-CHDMIHDMIType-CPhoto Pixels13MP48MP60MP48MP8MPVideo Pixels4K4K4K4KPixel Size2.8µm * 2.8µm2.9µm * 2.9µm1.5µm1.5µm2µm * 2µm2µm * 2µmTF Card Interface✅️✅️✅️Language10 LanguageChineseEnglish11 LanguageChineseEnglishChineseEnglishMeasurement FunctioncomputermeasurementcomputermeasurementBuilt-inSoftwarecomputermeasurementRemoteControl✅️✅️✅️Mouse Control✅️OtherFunctionCrosshair/line drawing/brightness contrast/white balance exposure/black and white mirroring and other parameter adjustmentsInterfaceHDMI:1080P 30FPSVGA：1080P 30FPSHDMI:1080P 60FPSUSB:1080P 30FPSHDMI:4K 30FPS1080P 60FPSType-C:4K 30FPS1080P 60FPSHDMI:1080P 60FPSHDMI:4K 30FPS1080P 60FPSType-C:4K 30FPSPackageNote:The XVH2003 (13MP IMX323) camera cannot be used with the computer software; it can only display images in real-time. The XH3007 (48MP 4K IMX335) camera comes with its own software and can only be connected to a monitor via HDMI for taking photos, recording videos, and making measurements. A wired mouse is included.The other three cameras can be used with the computer software. They can be connected to a computer via USB cable for measurement, photography, video recording, etc.!Computer software download link: https://drive.google.com/file/d/1uhIXHPESUhsn4dt3KSQ0sBGb4_ta6aWO/view?pli=11️⃣ UHD 4K IMX678 Camera Description:◆ Employs an 8.29 million pixel Sony CMOS image sensor;◆ Employs a 1/1.8-inch image sensor;◆ HDMI 38402160 30fps/1080P 60fps image output;◆ USB 2.0 driverless output 38402160 30fps image output;◆4K video recording;◆4K photo capture;◆One-click freeze/thaw function;◆Electronic zoom function;◆Supports manual/automatic exposure, exposure compensation value adjustment;◆Supports manual/automatic white balance, red, green, and blue adjustable;◆Provides 16-line drawing function, line color, thickness, and position adjustable;◆Provides center crosshair display/disable;◆Supports TF card storage, maximum support 64GB;◆Supports remote control operation, shake-free and clearer images;◆Supports Chinese and English menu languages (English by default);◆Supports saving settings parameters when powered off;◆Rugged metal casing;Specifications:Sensor: 1/1.8-inch Sony 8.29MP CMOS sensorPixel size: 2µm × 2µmHDMI output: 38402160 30fps / 19201080 60fpsUSB Output: 38402160/25601440/19201080/1280720/640480/424240/320240 (MJPG)Lens Interface: C/CSExposure: Auto/ManualExposure Compensation: SupportedWhite Balance: Auto/Manual, R, G, B adjustableStorage: Maximum 64GBInput Voltage: DC 5VSwipe Lines: Supports 16 straight lines, color, thickness, and position adjustableCenter Line: SupportedMenu Language: English/Chinese/TraditionalRemote Control: SupportedPackaging Dimensions: 14513070mmPackaging Includes:1XH3011 Camera1US/EU Plug1HDMI Cable1Type-C Cable1Remote Control2️⃣48MP 4K IMX335 Camera Description:◆ Employs Sony IMX335 CMOS image sensor;◆ Employs 1/2.8-inch image sensor;◆ HDMI 1080P 60fps image output;◆ Supports photo, video, and JPG formats;◆ Supports manual one-click exposure;◆ Supports manual one-click white balance, adjustable RGB;◆ Supports crosshair lines;◆ Supports USB flash drive storage and mouse operation;◆ Shock-free shooting for clearer images;◆ Supports Chinese and English menu languages (English by default);◆ Supports saving power-off settings;◆ Supports user-customizable boot screen;◆ Aluminum alloy casing machined using CNC precision milling technology;◆ Supports 12 measurement functions including line drawing, straight line, and circle measurement;◆ Supports measurement data calibration;◆ Supports importing PNG filesSpecifications:Sensor: 1/2.8-inch Sony IMX335 CMOS sensorPixel Count: 2μm2μmUSB Interface: USB 2.0 x2 (for USB flash drive and mouse connection)HDMI Output: 19201080 60FPSLens Interface: C-mountExposure: One-click exposure/Auto exposureWhite Balance: One-click white balance/Auto white balanceStorage: Supports USB flash drive storage and mouse operationImport PNG: Supports importing PNG files from USB flash drive to the cameraInput Voltage: DC 5V-12VCross Lines: Supports 8 center cross lines (color and position adjustable)Draw Lines: Supports 12 measurement functions including line drawing, straight line drawing, and circle drawing.Power-on Screen: Supports customizable power-on screenCalibration: Supports straight line calibration and circle calibrationMirror: Supports horizontal/vertical flippingMenu Language: English/Chinese/Traditional ChineseProduct Dimensions: 707038 mmPackaging Dimensions: 14513070 mmModel: XH3007Color: BlueProduct Dimensions: 773cmWeight: 3500gOutput Interface: HDMI USBResolution: 19201080PRemote Control: NoneFeatures: Built-in software (no computer connection required), mouse control supported.Package Contents:1* XH3007 Camera1* Adapter1* Mouse1* HDMI Cable1* Instruction Manual3️⃣ 60MP 4K IMX415 Camera Specifications:Interfaces: HDMI + Type-CDimensions: 424246mmSensor Size: 1/2.7"Power Supply: 12V/USBHDMI Output Resolution: 4K @30FPS / 1080P @60FPSUSB-PC Output Resolution: 4K @30FPS / 1080p@30FPSPhoto Resolution: 60MP (103685888)Video Resolution: 4K @30FPS / 1080P @30FPSMenu Language: 11 languagesModable Crosshairs: Supports 32 horizontal and vertical lines; color/line width adjustableLens Interface: CSOperating Current: 190mAEffective Pixels: 4K (38402160)Scanning Method: Progressive Shutter Type: Electronic ShutterDynamic Range: 69dBSignal-to-Noise Ratio: 40dBWhite Balance Mode: Single White Balance/Manual/AutoReduced Reflection Adjustment: AdjustableBlack & White: AllowedNegative: AllowedMirroring: AllowedFreeze/Thaw: AllowedAdjustable Image Brightness/Contrast/Sharpness/Saturation: AllowedPackage Includes:1XHU40121HDMI Cable1Type-C Cable1EU/US Plug1Remote Control1Instruction Manual4️⃣ 48MP 4K IMX327 Camera Description:◆ Employs a 2-megapixel imported Sony CMOS image sensor;◆ Uses a 1/2.8-inch image sensor, offering a wider field of view compared to a 1/3-inch sensor;◆ HDMI 1080P 60fps image output;◆ USB 2.0 driverless output 1080P 30fps image output;◆4K video recording;◆Maximum 4800MP photo capture, JPG format, photo size 4608x3456;◆One-key freeze/thaw function;◆Electronic zoom function;◆Supports manual/automatic exposure, exposure compensation value adjustment;◆Supports manual/automatic white balance, red, green, and blue adjustable;◆Provides 8-line drawing function, line color, thickness, and position adjustable;◆Provides center crosshair display/disable;◆Supports TF card storage, maximum support 64GB;◆Supports remote control operation, shake-free and clearer images;◆Supports Chinese and English menu languages (English by default);◆Supports saving settings parameters when powered off;◆Rugged metal casing;Specifications:Sensor: 1/2.8-inch imported Sony CMOS image sensorDimensions: 2.9µm × 2.9µmHDMI Output: 19201080 60FPSUSB Output: 19201080/30, 1280720/30, 640480/30, 320240/30 (MJPG)Camera Interface: C/CSExposure: Auto/ManualExposure Compensation: SupportedWhite Balance: Auto/Manual, RGB AdjustableStorage: Maximum Support 64GBInput Voltage: DC 5V-12VLines: Supports 8 straight lines with adjustable color, thickness (h), and positionCenter Line: SupportedMenu Language: English/ChineseRemote Control: SupportedModel: XHU4002Color: BlueNet Weight: 250gGross Weight: 450gProduct Dimensions: 606070mmPackaging Dimensions: 14513070mmOutput Interface: HDMI USBResolution: 19201080PRemote Control: YesPackage Includes:1XHU4002 Microscope Camera1Adapter1HDMI Cable1USB Communication Cable1Remote Control1Instruction Manual5️⃣13MP IMX323 Camera Description:◆ 2-megapixel back-illuminated CMOS image sensor◆ 1/3-inch image sensor;◆ HDMI/VGA 1080P 30fps image output;◆ Supports manual/auto/one-touch exposure, with adjustable exposure compensation;◆ Supports manual/auto/one-touch white balance, with adjustable red, green, and blue;◆ Provides 8-line drawing functionality, with adjustable line color, thickness, and position;◆ Center crosshair display/off;◆ Supports Chinese and English menu languages (English by default); 10 languages◆ Supports saving settings even when the camera is off;Camera Specifications:Sensor: SONY IMX323Dimensions: 755050mmVideo Interface: HDMI VGA Lens: CSOperating Voltage: 12VOperating Current: 150mAOptical Format: 1/3''Pixel Size: 2.8µm2.8µmTV Cable: 1200TV CablesMaximum Frame Rate: 60FPSScanning Method: Progressive ScanShutter Type: Electronic ShutterDynamic Range: 65dBRadio Signal-to-Noise Ratio: 45dBOSD Language: English/ChineseAWB Mode: Single White Balance/Manual/AutoHDR: AdjustableCrosshai: Supports 8 Colors/Adjustable Line WidthBlack & White: AllowedNegative: AllowedMirror Flip: Supports Left/Right/Top/DownFreeze: AllowedComparison: AllowedManual Adjustment of Brightness, Contrast, Sharpness, Saturation: AllowedOutput Display Resolution: HDMI: 16:9, 4:3 VGA: 19201080P or higherRemote Control: YesFeatures: Remote control functionPackage includes: 1XVH2003 microscope camera1Power cord1Remote control1Instruction manual150X 40mm lens specifications:Mounting diameter: 40mmWorking distance: 50mm-1000mmZoom ratio: 1:15Magnification: 0.15-2X (approx. 1-150X on screen)Maximum magnification field of view: 4.2mm2.4mmMinimum magnification field of view: 130mm70mmDimensions: 120mm (length)Weight: 120gCompatible camera size: 25mmRing Light Specifications:Material: PlasticColor: Black/WhiteDimensions: 100mmWeight: 240gModel: WR63HWPower: 4.5WPower Input: 110V-220VOutput Voltage: DC12V/1ANumber of LEDs: 56Operating Lifespan: 100,000 hoursColor Temperature: 6500KEffective Distance: 50-300mmInner Diameter: 63mmOuter Diameter: 97mmLight Color: WhiteSmall base specifications:Features: This microscope workstation is height adjustable to meet your requirements.It allows the microscope to rotate at any angle.The microscope lens can be fixed to this stand.Product dimensions: Assembled base dimensions: 150mm * 220mmMain column height: 290mmLens mounting inner diameter: 42mmAbout Shipment:We will ship your package within 1-2 working days. We may change the shipping method: Consider of the customs, remote address and shipping speed.Warranty &Return:Our store provides free replacement for orders within 30 days from delivery date. For orders from 1 to 12 months, you have to pay some parts of order value to get replaced. For order older than 12 months, we will give small discounts.Our Service time:Our Working time is Monday to Friday 9:00 AM to 6:30 PM BeiJing Time.All orders will not be processed at the weekend and holidays.Feedback:Please contact us first if you have any problem,i will reply you within 30 minutes during working time.We promise you to solve your problem within 24 hours.
