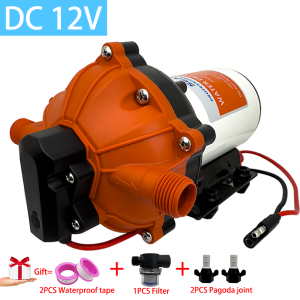

SEAFLO Diaphragm Water Pump 5.0GPM 60PSI DC12/24V Volts Electric Yacht Boat Marine RV Caravan High Pressure Supply 5 Chamber

Description:The 55 Series is our Heavy-Duty water pump. It provides high volume water flow with reduced pump cycling, thanks to the large five-chamber diaphragm. These models are designed to run on water systems with no accumulator tank necessary, and up to five fixtures! It is also suited for use with a holding tank water system, as may be found in a boat, RV or remote cabin. It provides up to 5.0 gallons per minute. The 55-Series pumps are self-priming, and can run dry without damage, performance reliable and low current. This automatic demand water system pump has a built-in pressure switch, which automatically starts and stops the pump when the faucet is opened and closed.They are easy to install service and winterizeSpecification:5 Chamber positive displacement diaphragm pump, self priming, capable of being run dryType: SFDP1-050-060-55Voltage: DC12/24VMax Flow Rate(LPM/GPM): 18.9/5.0Working current: 12V(5.8A) / 24V(3.00A)Max current: 12V(14.50A) / 24V(7.67A)Control Type: Pressure switch & By pass control Inlet/Outlet Ports: 1/2"-14 MNPTSuction stroke: 6 feet (1.8 m) suction liftMax Recommended Temperature: 60° C（140° F）Stopping pressure(PSI/BAR): 60/4.2 Features and advantages:1.Pressure control and stability2.Good sealing performance3.Low starting pressure, reduced circulation4.Good heat dissipation5.Short time dry operation6.Can be used in fresh and salt water7.Meet or exceed RoHS, SGS and ISO standardsMaterial:The ball: EPDMBall seat: EPDMdiaphragm: EPDMValve seat: EPDMValve ball: EPDMPump casing: Aluminium alloy
