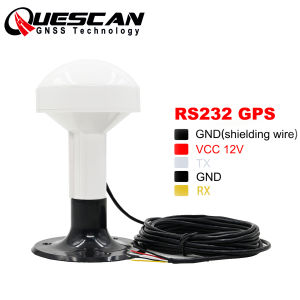

QUESCAN R70L RS232 GPS Receiver Antenna 12V Marine NMEA0183 GPS 4800 Baud 12V 24V Wide Voltage

R70L is a smart “all in one” GPS receiver solution for small boats. Simply connect the GPS R70L to a 12v or 24v DC supply and it will immediately start receiving GPS data and outputting this data in NMEA 0183 format (4,800 baud). The default baud rate for GPS R70L is 4800. The NMEA message includes: GGA RMC VTG GSV GSA GLL. If you need to change the GPS configuration, please let us know your requirements when placing an order. Of course, you can also customize the GPS configuration on a Windows PC by software U-center. Specifications Chipset：UBX NEO-7N Support Frequency：GPS L1/WAAS,SBAS L1,QZSS L1 Configure：Default GPS+SABS+QZSS Channels：56 Searching Channel Horizontal Accuracy：2.0m CEP SBAS Enable (Typical Open Sky) Time Precision：1us synchronized to GPS time Speed Accuracy：0.05m/sec 95% (SA off) Tracking ：-167dBm Reacquisition：-160dBm Cold start：-148dBm Cold Start：26s Warm Start：2s Hot Start：1s Support Rate：4800bps-921600bps，Default 4800bps Data Level：RS232 Data Protocol：NMEA0183 NMEA Message：GGA RMC VTG GSV GSA GLL Update Rate：Max 10Hz,Default 1Hz Flash：4M Flash Altitude：＜50000m Velocity：＜515m/s Acceleration：＜4G Voltage：7-28V,Typical:12.0V Current：20mA/12V Dimension：D10.5cm*H16cm Weight：400g Cable Length：5 meters Operating Temp：-45℃-+85℃ Storage Temp：-45℃-+85℃ Waterproof Level：IP67 Pin Definition Wiring Diagram GPS Tracking Test Via U-center GPS open to sky and parallel to horizontal plane NMEA Foramt In the default configuration, the NMEA-GSV messages are sent at 4-second intervals to avoid overflow in the TX buffer. Picture Show
