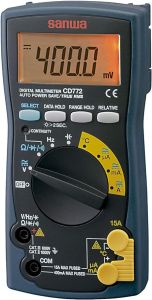

SANWA CD772 Digital Multimeter

Description:Sanwa CD772 Digital Multimeter■3-3/4 digits 4000 count■AC True RMS■Easy to read large LCD with Backlight■Large breaking capacity fuse 30kA■K-type thermocouple temperature measure ment -20℃〜300℃■Thermo plastic elastomer, high resistance against drop shock■Safety cap on current terminal■Data hold, Range hold, Relative function■Continuity check, Diode test■Auto power off function (30min.)■Maximum 20A can be measured if the measurement time is less than 10 seconds. (Take 10 minutes or longer intervals between measurements)Display : numeral display 4000Sampling rate : 3 times / sec.AC frequency bandwidth : 45〜500Hz (4V range), 45〜1KHz (40V range and above)
