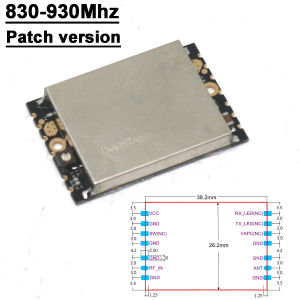

433Mhz 510Mhz 868Mhz 915Mhz Bidirectional Signal Amplifier RF POWER AMP Booster LORA Helium Miner Drone Receiver/Transmitter

433Mhz 520Mhz 868Mhz 915Mhz Bidirectional amplifier RF Signal Amplification Signal Amplification POWER Booster RX/TX LORA Helium Miner Droneworking frequency: 420MHz-480MHz/470MHz-520MHz/830-930Mhz420MHz-480MHz/470MHz-520MHz : Rx gain: 15dB+2dB830-930Mhz :RX gain: 11dB+2dBNF: 2.0dBTX gain: 5dB-11dB(士2dB) AdjustableTX/RX switching threshold : -2dBmTX input power range:1dBm - 20dBm420MHz-480MHz/470MHz-520MHz : Maximum transmit power: 30dBm (1w) at 5.0V supply voltage830-930Mhz                                      ：Maximum transmit power:31dBm (1.3w)lndicator Status :RX status: Green light is on, Blue light is offTx status: Blue light is on,Green light is offoperating Voltage : 5V (4.75V-5.25V)RX status : 10mA (士3mA)working current :Tx status : ≤720mASIZE : 5X2.6CM1. Built-in TX/RX automatic switching circuit, TX/RX status can be switched independently without external control signal.2. It works in RX status by default, and enhances the receiving signal. When the transmitting signal of the superior device is detected, the module instantly switches to the TX status.3. The TX gain is adjustable, which is convenient to be compatible with wireless devices with different transmission powers.4. Compatible with various modulation methods such as LORA and FSK/ASK/OOK/MSK/GFSK.Tips:The output power of the upper-level device must be at least 3dB higher than the switching threshold, which means that the output power of the upper-level device cannot be lower than 1dBm, otherwise itmay cause unstable operation.
