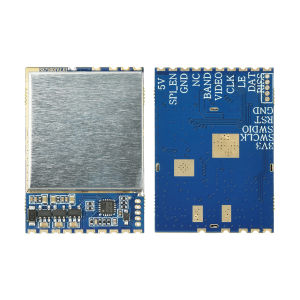

RX7500 FPV Simulated Wireless Video Receiver Module 6-7.5GHz Bandwidth RF Receiver Module Freely Editable Channels SPI Mode

Product Features:1. Supports 6-7.5GHz wideband reception, accommodating diverse wireless video transmission scenarios2. Unlimited channel customisation, enabling free editing of an unlimited number of channels3. High sensitivity at -95dBm, maintaining clear image quality even under weak signal conditions4. FM/PLL demodulation technology ensures crisp visuals with minimal video transmission distortion5. Widely applicable across industrial sectors including drones, robotics, and emergency communicationsProduct Specifications:Product Name: Video Transmission Receiver ModuleChannels: User-editable channels with no quantity restrictionSupply Voltage: DC 5VCurrent Consumption: 390mA MaxOperating Environment: -10~+65 ºC, 85%RHStorage Temperature: -30~+85 ºCApplication Scenarios:Drone FPV real-time video transmission systems, industrial wireless surveillance equipment, intelligent robot vision transmission systems, mobile emergency communication vehicles, or field operation equipmentRadio Frequency (RF):Receive Frequency Range: 6000–7500 MHzInput VSWR: 2:1Demodulation Method: FM/PLLIntermediate Frequency (IF): 5400 MHzReceive Sensitivity: -95 dBmVideo Characteristics:Video Output Impedance: 75Ω, Typ.Video Output Level: 1Vp-p, Typ.3dB IF Bandwidth: 16.5MHzSignal-to-Noise Ratio (S/N): 30dB, MinRSSI Output Voltage (-30dBm to -90dBm): 1.2V to 0.6VDescription:When SPI/EN is high, the module receives SPI signals to control frequency. If no frequency setting or an invalid setting is received, it defaults to operating at 6150MHz. The configurable frequency range is 6G to 7.5G, with 1MHz steps. SPI signal level is 3.3V, maximum 100K baud rate.Note: The RX7500's SPI mode is controlled via an external microcontroller, allowing freely editable channels with no quantity restrictions.Packing List:Module x1
