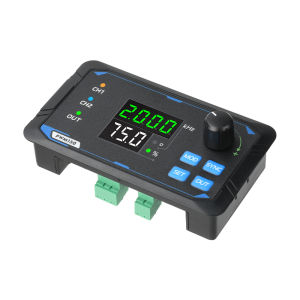

Aideepen | PWM150 Dual-channel Signal Generator Servo Motor Driver Frequency Meter Adjustable Square WavePulse WaveFrequencyDuty Cycle

Product features1. Dual-channel PWM signal generator: It features dual independent outputs, adjustable duty cycle, adjustable phase difference and other functions2. Dual-screen dynamic display: 4-digit green (frequency) + 3-digit white digital tube (duty cycle/phase), real-time synchronous display of parameters, refresh rate 120Hz3. Multiple safety guarantees: Under the condition that the voltage does not exceed 20V, it can achieve short-circuit protection function at the output terminal within 60 seconds4. Intelligent human-computer interaction: Rotary encoder (with keys) + four-function keys (MOD/SYNC/SET/OUT), supporting multi-channel switching and synchronization mode5. Wide range of applications: It can be used in fields such as electronic laboratories, industrial automation, education and training, and creative DIYProduct parametersOutput frequency: 1Hz-150kHzDuty cycle accuracy: 0-100%, step adjustment 0.1%Rise time: 20nsPhase adjustment: 0-360° (1° step, synchronous mode available)Power supply mode: External power supply (DC 5-24V)Output voltage: DC 5-24V, maximum output current 0.2ADisplay mode: 4-digit green + 3-digit white digital tubeProduct dimensions: 1086324mm1Hz-10kHz (Accuracy: 0.2%)10Hz-50kHz (Accuracy: 0.4%)50Hz-150kHz (Accuracy: 2%)Packaging listServo Motor Driver Frequency Measuring Instrument *1Instruction Manual *1
