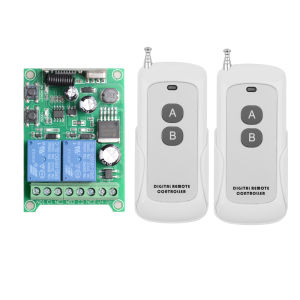

DC 12V-48V 433Mhz 200M RF Wireless Remote Control Switch Relay 2CH Multifunction Receiver Module Garage Curtain Motor LED Light

Note: Our products are a combination package, which can be used together or separately, so the products received by the buyer are based on the option picture of the SKU. If you only purchase the receiver, you will only receive the receiver without the remote control. If you only purchase the remote control, you will only receive the remote control without the receiver.About Receiver:Model No.: AK-RK02E1. Working voltage: DC12-48V2. Quiescent condition: Less than 6mA3. Working temperature: -40 Degree +80 Degree4. Receiver sensitivity: more than -105dBm5. Working frequency: 433mhz6. Output voltage: DC and Switch Signal is optional7. Max load current: Less then 10AAbout Working way:Working way changed by Model buttonMomentary: press model button 1 timeRelay: Press and hold -> On; Release -> Off.Latched: press model button 2 times Relay: Press -> On; Press other button -> Off.Toggle: press model button 3 timesRelay: Press -> On; Press same button again -> Off·1CH Momentary+1CH Toggle : press model button 4 timesAbout Learning and clearing Method:Learning: press learning button 1 time, the LED indicator flash then press the transmitter button A, LED indicator flash 3 times and off, button A learning successfully.press learning button 2 times, the LED indicator flash then press the transmitter button B, LED indicator flash 3 times and off, button B learning successfully.Clearing: Hold press learning button about 8 seconds, indicator from ON to OFF, then press remote, Relay did not Respond, it means clearing code successful.
