ANENG | ANENG Q10 9999 Count True RMS Digital Multimeter Anti Burn VA Screen NCV AC DC Voltage and Current Ohmmeter Automatic Power Off

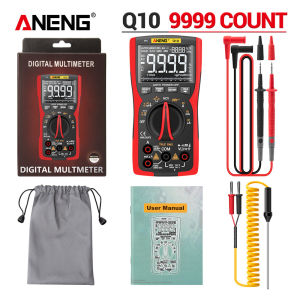

ANENG Q10 9999 Count True RMS Digital Multimeter Anti Burn VA Screen NCV AC DC Voltage and Current Ohmmeter Automatic Power Off

Description: ANENG Q10 is an automatic range digital multimeter with 9999 words with a true effective value. The instrument is full-key operation with triple display. Measure AC voltage and DC voltage Measure AC and DC current Measuring resistance/temperature Test continuity and diode Measuring capacitance/NCV Measuring frequency and duty cycle Anti-interference AC voltage detection

Specification:

		Brand


		ANENG


		Model


		Q10




		Display (LCD)


		9999


		Range


		automatic / manual




		Material


		ABS+TPE


		Sampling rate


		3 times/sec




		True RMS


		yes


		Data retention


		yes




		Screen backlight


		yes


		Low battery warning


		yes




		Automatic shut-down


		yes


		type of battery


		3 * 1.5V AA battery (not included)




		Features


		Range


		Precision


		AC frequency response




		DC Current


		9.999A/999.9mA


		±(1.0%+3)


		-




		DC Current


		99.99mA/9.999mA/99.99μA/999.9μA


		±(0.8%+3)


		-




		AC current


		9.999A/999.9mA


		±(1.2%+3)


		40Hz~1kHz




		AC current


		99.99mA/9.999mA/99.99μA/999.9μA


		±(1.0%+3)


		40Hz~1kHz




		DC voltage


		999.9mV/9.999V/99.99V/999.9V/9.999mV/99.99mV/999.9mV


		±(0.5%+3)


		-




		AC voltage


		999.9mV/9.999V/99.99V/750.0V/9.999mV/99.99mV/999.9mV


		±(1.0%+3)


		40Hz~1kHz




		Resistance


		99.99Ω


		±(1.0%+3)


		-




		Resistance


		999.9Ω/9.999kΩ/99.99kΩ/999.9kΩ


		±(0.5%+3)


		-




		Resistance


		9.999MΩ


		±(1.5%+3)


		-




		Resistance


		99.99MΩ


		±(3.0%+5)


		-




		Capacitance


		9.999nF


		±(5.0%+20)


		-




		Capacitance


		99.99nF/999.9nF/9.999μF/99.99μF/999.9μF


		±(2.0%+5)


		-




		Capacitance


		9.999mF


		±(5.0%+5)


		-




		Frequency


		99.99Hz/999.9Hz/9.999kHz/99.99kHz/999.9kHz/5.000MHz


		±(0.1%+2)


		-




		Temperature


		(-20~1000)℃  /  (-4~1832)℉


		±(2.5%+5)


		-




		Duty cycle


		1%~99%


		diode


		yes




		On and off


		yes


		NCV


		yes




		working environment


		temperature


		0~40℃










		humidity


		＜75%






Package: 1 * ANENG Q10 Digital Multimeter 2 * Test lead wire 1 * Thermocouple 1 * Manual 1 * Cloth bag(According to the choice) 1 * 16 in 1 combination line(According to the choice)
