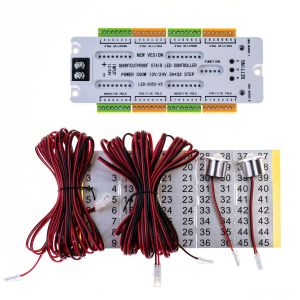

32 channel staircase LED human body induction light | DC12V/24V anti short circuit controller

Important safety measures for the product: This item operates at a low voltage of DC12V-24V.Please make sure to connect it to an appropriate switch power supply.Please avoid connecting the wrong voltage to prevent damage to the controller.The input terminals have been marked as positive and negative; Please do not invert them.Always turn off the power before connecting to the light.After completing the setup, please verify the wire and light connections before restoring power.If the connecting wires and lights are not set according to the instructions, it may cause a short circuit and result in unstable control.The channel light will indicate, then press and hold the 1 key [1] or wait for 5 seconds to save the settings; Lightly press the 1 key to select 5 modes, and choose your favorite mode according to the light indication.The functions of the display area are as follows: the second light on the left represents "steps", the first light on the left displays "interval steps", the third light on the left represents "fully lit", the fourth light on the left represents "follow", and the fifth light on the left represents "automatic" (follow the mode when no one is around and walk when someone is around).To select the duration of continuous lighting, press the 1 key [2] briefly and choose from "10s-20s-40s-80s-100s".The display area functions as follows: one light represents "10S", two lights represent "20S", three lights represent "40S", four lights represent "80S", and five lights represent "100S".To adjust the brightness of the staircase lights, hold down key [2] for 4 seconds, then lightly press key [2] to select "10% -20% -40% -60% -100%", and finally either hold down key [2] again or wait for 5 seconds to save your preferences.In the function display area, one light represents "10%", two lights represent "20%", three lights represent "40%", four lights represent "60%", and five lights represent "100%".To adjust the water flow rate of the staircase light, press the [3] key briefly.There are options for "0.3s, 0.5s, 0.8s, 1.0s, 1.2s".In the function display area, one light displays "0.3S", two lights display "0.5S", and three lights indicate ..0.8S "indicates that four indicator lights are on," 1.0S "indicates that five lights are on, and" 1.2S "corresponds to the same effect.Press and hold the key [3] to turn on or off the 1% brightness backlight function (all channels have 1% brightness when not occupied, and will increase brightness when occupied);When there is no operation on any button within 5 seconds, all lights will flash once and automatically save all configuration settings.Supplementary operation: If AB sensing is activated simultaneously within 6 seconds, it will move up and down simultaneously.If AB induction occurs after a 6-second delay, the direction of AB induction will only move from one end to the other.Set the duration of the chase.Every step passes, all activations follow automatically.If the induction persists during the delay period, it remains active for the total duration from A to B and the delay time.There is a short-circuit protection device that indicates the short-circuit status through five flashing indicators.Product Title: Enhanced LED Stair Detection Control Unit Product Model: LED2052-V2 Power Supply: DC12V/24V Connection: 2 Sensor Units: 2 (AB) Size: Approximately 180 * 63 * 19mm Channel: 32 (configurable from 1 to 32 steps)
