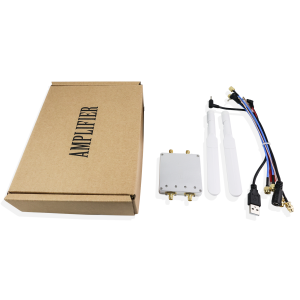

EDUP | EDUP AB023S 2.4GHz 4W Dual Band WiFi Booster High Power Signal Repeater Extender Amplifier for Repeater Connectivity

EDUP AB023S 2.4GHz 4W Dual Band WiFi Booster High Power Signal Repeater Extender Amplifier for Repeater ConnectivityNoteThis product does not come with a power supply. The product supports three types of power supply: 12V/1A power supply, 5V portable charger (power bank) and battery. You can choose the suitable power supply according to your needs. Features - 2.5dB ultra-low noise- 5V to 16V operating input range- Working with certified IEEE 802.11b/g/n Wireless LAN devices- Simply plug and play, no software is required- 50X the power, improving the link quality and coverage of certified WLAN devices Specifications 1.Frequency Range：2400-2500MHz2.Operating Voltage：5-16V3.Receiving Gain：18dB±14.Transmission Gain: 18dB±15.Max Output Power(P1dB)：36dBm(4W)6.Input Trigger Power：Min:3dBm Max:23dBm7.EVM：3%@28dBm 802.11g 54Mbps OFDM 64QAM BW 20MHz8.Noise Figure：＜2.5dB9.Current Supply：580mA@Pout 28dBm 12V10.TX/RX Switch Time Delay：＜1 us11.LED Indicator：Transmitter: Green; Receiver: red12.Operating Temperature：-30℃～+70℃13.Storage Temperature：-40℃～+150℃14.Operating Humidity：Up to 95% rel. humidity15.RF Connector：Input: SMA-K; Output: RP-SMA-K16.Power Socket：2.50.7mm DC17.Shell Size：6561*12(mm)18.Shell Material：Aluminum19.Net Weight：0.12KgNote: Please use within the input power range, excessive power may burn out the equipment or cause it to malfunction! (Input Trigger Power: Min: 3dBm Max: 20dBm)Shipping and Returns:Shipping is available from China, Russia and SpainWarranty:Products ordered from China come with a 75-day money-back guarantee.What's in the boxAB023   *1
