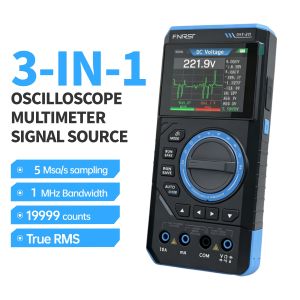

FNIRSI | FNIRSI DST-210 3IN1 Digital Multimeter Oscilloscope Signal Source 19999 Counts 10MHz/1MHz Portable Electrician Tool

Basic Parameters1.Screen Material: 2.8 inch TFT Color Screen2.Backlight: Backlight brightness adjustable3.Charging Power: TYPE-C (5V 1A)4.Battery: 3000mAh5.Languages: Chinese / English6.Product Size: ≈177.43×87.47×34.5mm7.Net Weight: ≈300gParameters 11.Real-time Sampling rate: 5MSa/s(DST-201)；48MSa/s(DST-210)2.Analog Bandwidth: 1MHz(DST-201)；10MHz(DST-210)3.Input Impedance: 1MΩ4.Coupling Mode: AC/DC5.Test Voltage Range: 1:1 Probe: 80Vpp (+40V), 10:1 Probe: 800Vpp (+400V)6.Vertical Sensitivity: 10mV/div - 10V/div7.Vertical Displacement: Adjustable with indicators8.Level Time Base: 500ns ~ 20s9.Trigger Mode: Auto / Normal / Single10.Trigger Type: Rising Edge & Falling Edge11.Trigger Level: Adjustable with indicators12.Waveform Freeze: Support (HOLD function)13.Auto Measurement: Maximum, Minimum, Average, RMS, VPP, Frequency, Period, Duty CycleParameters 21.DC Voltage: 1.9999V/19.999V/199.99V/1000V —— ±(0.5%+3)2.AC Voltage: 1.9999V/19.999V/199.99V/750.0V —— ±(1%+3)3.DC Current: 19.999mA/199.99mA/1.9999A/9.999A —— ±(1.2%+3)4.AC Current: 19.999mA/199.99mA/1.9999A/9.999A —— ±(1.5%+3)5.Resistance: 19.999MΩ/1.9999MΩ/199.99KΩ/19.999KΩ() —— ±(0.5%+3)1.9999KΩ/199.99Ω——±(2.0%+3)6.Capacitance: 999.9uF/99.99uF/9.999uF/ 999.9nF/99.99nF/9.999nF —— ±(2.0%+5)9.999mF/99.99mF —— ±(5.0%+20)7.Frequency: 9.999MHz/999.9KHz/99.99KHz/9.999KHz/ 999.99Hz/99.99Hz/9.999Hz —— ±(0.1%+2)8.Temperature: -55~1300℃/ -67~2372℉ —— ±(2.5%+5)9.Diode/Continuity: √10.Zero Live Wire: √
