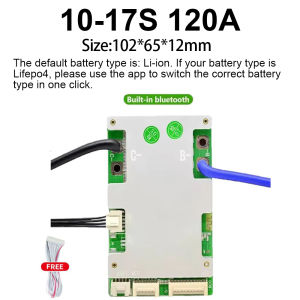

JBD Smart BMS 10S 11S 12S 13S 14S 15S 16S 17S 120A 360A For LifePo4 36V 48V Lithium Battery Bms Built-in BT smart balance board

The default battery type is: Li-ion. If your battery type is Lifepo4, please use the app to switch the correct battery type in one click.JBD BMS Smart BMS- SP17S005(Automatically identify strings 10S-17S)Product IntroductionSize:1026512mmApplicable Battery Type: 3.2V Lifepo4/3.7V Li-ion Battery.Support strings number:Automatically identify 10S/11S/12S/13S/14S/15S/16S/17S.Continuous current 20A,peak current 60A continue 1s.Continuous current 40A,peak current 120A continue 1s.Continuous current 50A,peak current 150A continue 1s.Continuous current 60A,peak current 180A continue 1s.Continuous current 80A,peak current 240A continue 1s.Balance Model:Charge/Static Equalization.Balance Current:30-90mA.Balance Function:Common Port With Balance.Temperature Sensor:1pc Internal,2pcs External.Applicable for:Power Battery,Lithium Battery,E-Bike,E-Motorcycle,E-scooter,etc.Package Included:BMS with built-in BT*Balance Wires.Function Introduction(1)BT-APP in Phone : xiaoxiangElectric AppSupport Both IOS and Android version,can monitor and change the parameters(need to be within the specified range).(2)UART-JBD PC Tool Box:Monitor and Set parameters.(3)UART LCD Display:Can monitor parameters on LCD display.Attention(1)The smart bms with integrated bluetooth on the board,needn't buy bluetooth separately.(2)The smart bms has BT and UART function.(3)Uart smart accessories need buy.(4)APP and BMS manual:pls contact customer service.
