Stepper Motor Driver DM556 DM542 DM860 For 42 57 86 2 Phase Digital Stepper Motor Driver Cnc Engraving Machine Stepper Motor

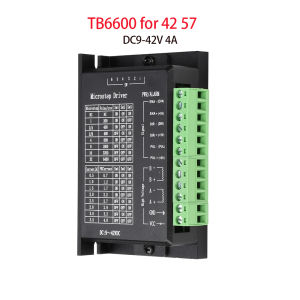

Stepper Motor Driver DM556 DM542 DM860 For 42 57 86 2 Phase Digital Stepper Motor Driver Cnc Engraving Machine Stepper Motor TB6600Product Features1. Eight levels of subdivision can be adjusted to meet the accuracy requirements of multiple scenarios2. Automatic half flow+large area heat sink, lower temperature rise3. Input anti reverse connection+optocoupler isolation for safer operation4. Built in overcurrent/overheat dual protection for stronger reliability5. The driving current is as high as 4.0A, providing strong and stable powerProduct parametersInput voltage: 9-24V (recommended 12-24V)Input current: It is recommended to use a switch power supply with a power of 5AOutput current: 0.5-4.0AMaximum power consumption: 160WSubdivision: 1, 1, 2/A, 2/B, 4, 8, 16, 32Temperature: Operating temperature -10~45 ℃; Storage temperature -40~70 ℃Humidity: 40-90% RHGas: Flammable gases and conductive dust are prohibitedProduct IntroductionThe upgraded version of TB6600 stepper motor driver (not referring to the chip inside the driver being TB6600) is a professional two-phase stepper motor driver with 8 levels of subdivision control (1, 2, 4, 8, 16, 32) and 6 levels of current control (0.5A, 1A, 1.5A, 2A, 2.5A, 3A, 3.5A, 4A). The driver pulse signal is 3.3V/5V/24V, which is universal and does not require a series resistor. Connect the power supply to DC9-40V (recommended DC24V).DM542 DM556Product Features1. Supports 200KHz high-speed pulses, with fast and accurate response2. 3.3-24V wide voltage signal input, no external current limiting resistor required3. Up to 15 levels of subdivision options are available, with stable performance4. Optocoupler isolation signal input, strong anti-interference ability5. It has functions such as overheating, overcurrent, undervoltage locking, and input voltage anti reverse protection6. Large volume heat sink, effective heat dissipation, easy installation7. Can drive 4, 6, 8-wire two-phase, four phase stepper motors, 42 type, 57 type motorsProduct parametersInput voltage: DC 20-50V (recommended 24-50V)Output current: DM542:1.0-4.2A/DM566:1.4-5.6AMaximum pulse frequency: 200KHzSignal input: single ended, pulse/directionSubdivision options: 2/4/8/16/32/64/128/5/10/25/40/50/100/125 Subdivision, with a maximum resolution of 25600 steps per revolutionStorage temperature: -10-80 ℃Maximum ambient temperature: 65 ℃Workplace: Do not place it next to other heat generating equipment. Avoid dust, oil stains, corrosive gases, high temperatures, and strong vibration areas. Combustible gases and conductive dust are prohibitedProduct IntroductionThe DM542 DM566 DSP driver is a professional two-phase hybrid digital stepper motor driver that can be adapted to various domestic and foreign brands. It has a current of 4.2A/5.6A and below, and an outer diameter of 57,86mm for four wire, six wire, and eight wire two-phase hybrid stepper motors. Suitable for various small and medium-sized automation equipment and instruments, such as engraving machines, marking machines, cutting machines, laser typesetting, plotters, CNC machine tools, handling devices, etc. The effect is particularly good in devices where users expect high current, low noise, and high subdivision operation.DM860HProduct Features1.7.2A high current, strong driving force2. Wide voltage range of 24-110V, with a wide range of applications3. Compatible with 57/86 motors, universal and convenient4. High subdivision, low noise, smooth operation5. Comes with a built-in cooling fan, durable and long-lastingProduct IntroductionThe DM860H driver is a professional two-phase hybrid digital stepper motor driver that can be adapted to various brands on the market. It is suitable for four wire, six wire, and eight wire two-phase hybrid stepper motors with currents of 7.2A and below, outer diameters of 57mm and 86mm. Suitable for various small and medium-sized automation equipment and instruments, such as engraving machines, marking machines, cutting machines, laser typesetting, plotters, CNC machine tools, handling devices, etc. Excellent performance in devices where users expect high current, low noise, and high subdivision operationProduct parametersSignal input: single ended, pulse/directionSubdivision options: 2/4/8/16/32/64/128/5/10/20/25/40/50/100/125 SubdivisionMaximum pulse frequency: 200KHzOutput current: 2.0A-7.2AInput voltage: 24-110VDC/18-80VAC AC/DC universalCan drive 4, 6, 8-wire two-phase and four phase stepper motors, 57 type and 86 type motors (Optocoupler isolation signal input, strong anti-interference abilityIt has functions such as overheating, overcurrent, undervoltage locking, and input voltage anti reverse protectionLarge volume heat sink, effective heat dissipation, easy installationExternal signal 3.3-24V universal, no need for series resistanceWiring requirementsTo prevent interference with the drive, it is recommended to use shielded cables for control signals, and short-circuit the shielding layer to the ground wire. Only the same point of grounding is allowed in the same machine. If it is not a real grounding wire, the interference may be severe, and the shielding layer should not be connected at this time.2. Pulse and direction signal lines are not allowed to be wrapped side by side with motor and power lines. It is best to separate them by at least 10cm, otherwise motor noise can easily interfere with pulse direction signals, causing inaccurate motor positioning, system instability, and other faults.3. If a power supply supplies multiple drivers, parallel connection should be adopted at the power supply, and chain connection from one driver to another is not allowed.4. It is strictly prohibited to plug and unplug the power terminals of the drive when it is live. When the live motor stops, there is still a large current flowing through the coil, and plugging and unplugging the power terminals will cause a huge instantaneous induced electromotive force that will burn out the drive.5. It is strictly prohibited to add tin to the wire head before connecting it to the terminal block, otherwise it may cause overheating and damage to the terminal due to increased contact resistance.6. The wiring head should not be exposed outside the terminal to prevent accidental short circuit and damage to the driver.TB6600 DM542  DM556 DM860H
