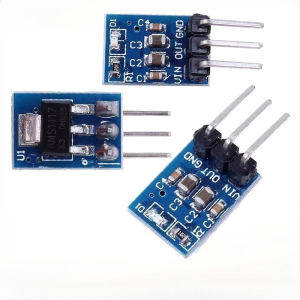

1/5/10pcs AMS1117 3.3 AMS1117-3.3 Voltage Regulator Step Down Power Supply Buck Module 4.2 V-10 V to 3.3V 800mA LDO 800ma 3P

Product descriptionFeatures: Output current: 1A Line adjustment rate: 0.2% (maximum) Load regulation: 0.4% (max.) Package Type: SOT-223 Operating junction temperature range: -40 to 125°C Welding temperature (25 seconds): 265°C Storage temperature: - 65~150°C Output voltage: 3.267 to 3.333V (IOUT: 0 to 1A, VIN :4.75V to 12V) Line adjustment (maximum): 10mV (VIN :4.75V to 12V) Load regulation (maximum): 15mV (VIN = 5V, IOUT: 0 to 1A) Voltage difference (maximum): 1.3V Current limit: 900 ~ 1500mA Quiescent Current (Max): 10mA Ripple suppression (minimum): 60dB Size:8.6mm x 12.33mm Note: 1.Please do not exceed operating voltage, or it will be damaged easily! 2.Exceeding the maximum allowable power consumption will result in excessive chip temperature 3.Can not reverse polarity , or it will result in short circuit! Package included: 1 x AMS1117-3.3 module or 5x AMS1117-3.3 module or 10 x AMS1117-3.3 module
