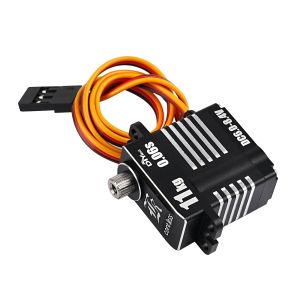

11KG Micro Full Metal Digital Servo HV Programmable Mini Servo 180/270/360 Degree Coreless Motor Steel Gear for Arduino RC Cars

11KG Micro Full Metal Digital Servo HV Programmable Mini Servo 180/270/360 Degree Coreless Motor Steel Gear for Arduino RC CarsProducts SpecifcationProducts Name: 11KG Digital servo motorApply Environmental ConditonStorage Temperature Range: -30°C～80°COperating Temperature Range:  -25°C～70°CStandard Test EnvironmentTemperature Range: -25°C～70°CHumidity Range: 65%±10%Mechanical SpecificationSize: 23.026.312mmWeight: 22g±5%Gear type: 5 MetalLimit angle: 360°Bearing: 2BBHorn gear spline: 25T; Diameter: 5.0mmHorn type Plastic, POMCase Aluminum alloyConnector wire 250mm±5mmMotor Coreless high speed motorSplash water resistance IP65Electrical SpecificationIdle current:  ＜40mAOperat voltage:        4.8V                6.0V                7.4V                 8.4VNo load speed:  0.11sec/60°      0.09sec/60°      0.07sec/60°      0.06sec/60° Runnig current:    160mA            180mA              220mA              250mAPeak stall torque:  6.5kg.cm       8.5kg.cm           11.5kg.cm         13.5kg.cmStall current:    1600mA±10%   2000mA±10%    2200mA±10%   2500mA±10%Control Specification: Command signal: Pulse width modificationAmplifier type: Digital controllerPulse width range: 500～2500usecNeutral position: 1500usecRunning degree: 180°/270°±3°(when 500～2500usec)/360° continuous rotationDead band width: 3 usecRotating direction: Counterclockwise (when 1000～2000usec)Note: Product operating voltage: 4.8V-8.4V, signal voltage: 3.0-5.0V.Signal Period: 20ms, Pulse Width: 500us-2500us.
