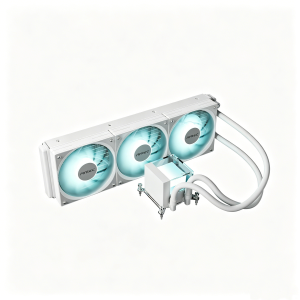

other | Antec P360 Integrated Water-Cooled Radiator Visualized Water Cooling Head 4PIN Fan Supports ARGB Liquid Heatsink For LGA115x/AMD

Antec P360 Integrated Water-Cooled Radiator Visualized Water Cooling Head 4PIN Fan Supports ARGB Liquid Heatsink For LGA115x/1700/1200/AMD:AM4/AM5Important Installation Tips1.Wiring Guide①Pump cable (3‑Pin / 4‑Pin)Prioritize the motherboard AIO_PUMP / PUMP_FAN header. This header runs at full speed by default for stable pump operation.If no dedicated pump header is available, use SYS_FAN. Do NOT use CPU_FAN, which is reserved for radiator fans for speed adjustment.②Radiator fan cables (4‑Pin PWM)Connect to motherboard CPU_FAN header. Fans will auto‑adjust speed according to CPU temperature for balanced cooling and low noise.For 240 / 360 AIO with multiple fans, use the included fan hub to combine fans into one cable before plugging into CPU_FAN.③5V 3‑Pin ARGB (Addressable RGB)Plug into motherboard 5V ARGB / ADD_GEN / WS2812B 3‑pin header.⚠️ Do NOT connect to 12V RGB header, this will destroy ARGB lighting.2.Fan Airflow Direction: Make sure fans blow air OUT of the case. Installing fans backwards will reduce cooling performance.3.Screw Selection: Please use the correct matching screws. Do NOT mix up different‑length screws, to avoid damaging the radiator or motherboard.4.AIO Tube Warning: Do not twist, kink or squeeze the water‑cooling tubes. Keep tubes free of sharp bends.5.Tightening Note: Tighten mounting screws evenly in cross‑pattern. Do NOT over‑tighten, to prevent CPU damage.6.AMD Note: This bracket supports AM4 / AM5 platforms. Double‑check bracket orientation before installation.7.Remove protective film from cold‑head metal base before installation. Failure to remove will cause zero heat dissipation and overheating.Product parametersSupported platforms: Intel: LGA 1200/115X/1700 AMD: AM4/AM5main bodySize: 360 * 120 * 25mmType: PWM ARGB LED fanSpeed: 800-1800 RPM ± 10%Maximum air volume: 72 CFM maxNoise: 32.0 dB (A) maxWind pressure: 2.2 mm H'o maxLifespan: Room temperature 25 ℃, relative humidity 15-65%, can be used for 40000 hoursConnector: Fan: 4pin/ARGB: 3PINWater cooled exhaustSize: 393 * 120 * 20mmMaterial: Aluminum, polycarbonatewater pumpSize: 57 * 72 * 48mmConnector: 4pin power supplyLift: 1.2mFlow rate: 1.3L/minLifespan: Room temperature of 25 ° C, relative humidity of 15-65%, can be used for 70000 hoursNoise: ≤ 27 dB (A)water pipeSize: 8 * 10 * 450mm
