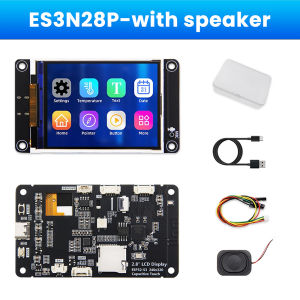

Aideepen | ESP32-S3 ESP32 S3 2.8-inch TFT Module Touch Screen Development Board with WiFi Bluetooth Smart AI Display 240x320 IPS Screen

Features:1. Powered by ESP32-S3 dual-core processor with up to 240MHz clock speed for robust performance.2. Equipped with 2.8-inch color display featuring 240x320 resolution for vivid colors and wide viewing angles.3. Supports capacitive touch and Type-C interface for convenient interaction and stable power supply.4. Built-in microphone + external speaker support enables audio playback and voice capture.5. Multiple peripheral interfaces and TF card slot provide strong expandability and flexible development connectivity.Product Introduction:● Features ESP32-S3 for powerful performance, easy development, and abundant resources● 2.8-inch color display with 240x320 resolution, supporting up to 262K colors (RGB666) for vivid visuals● Extensive interfaces for connecting various peripherals (I²C, UART, etc.)● Supports external speakers and built-in microphone for audio playback and capture● Integrated RGB tri-color indicator lights for comprehensive status indication● Integrated capacitive touchscreen for intuitive human-machine interaction● Standard Type-C port for convenient program downloading and power supply● Built-in Micro TF card slot for expandable storage● Supports external lithium battery for lightweight portability● Integrated battery charging management circuit ensures safe charging/discharging● Rich sample programs provided for easy learning● Low-level driver technical support with online WIKI documentation updates● ● Module aging tests meet military-grade standards through multi-level verification, ensuring long-term stable operation● Supports XiaoZhi AI voice chatBasic Product Specifications:Touchscreen model: ES3C28PNon-touchscreen model: ES3N28PPower interface: USB (Type-C)Module: ESP32-S3CPU: Xtensa LX7 32-bit dual-core processorClock speed: 240MHz (Maximum)Storage: 384 KB ROM + 512 KB SRAM + 16 KB RTC SRAM + 16 MB external QSPI FlashWi-Fi: 2.4 GHz band supporting 20 MHz and 40 MHz bandwidthsBluetooth: Bluetooth V4.2 BR/EDR and Bluetooth LE standardsOperating Voltage: 3.0–3.6 VLCD Screen Specifications:Screen Size: 2.8 inchesScreen Type: TFTResolution: 240xRGBx320 (pixels)Effective Display Area: 43.20 (W) x 57.60 (H) (mm)Color Depth: Maximum: 262K (RGB666); Common: 65K (RGB565)Driver IC: ILI9341VDisplay Interface: 4-Line SPI (connected to ESP32)Pixel Pitch: 0.153(H) x 0.153(mm)Viewing Angle: ALL 0’CLOCKBacklight Brightness (Typical): 280 cd/m²Backlight Type: White LED*4Operating Temperature: -30~80(℃)Storage Temperature: -30~80(℃)Capacitive Touch Parameters:Active Area Size: 2.8 inchesTouchscreen Type: Capacitive TouchscreenTouchscreen Resolution: 240x320 (pixels)Driver IC: D-FT6336GViewable Window Size: 45.20 (W) x 59.45 (H) (mm)Communication Interface: IICStructure Material: ITO Film + ITO GlassOperating Temperature: -30~80(℃)Storage Temperature: -30~80(℃)Product Dimension Parameters:LCD Panel Dimensions: 50.00±0.2(W)x69.20±0.2(H)x2.3±0.1(D)(excluding flex cable and adhesive backing)Touchscreen Dimensions: 50.00±0.2 (W) x 69.20±0.2 (H) x 1.20 ±0.1 (D) (excluding flex cable and adhesive backing)Module Dimensions: With Touchscreen: 50.00 (W) x 86.00 (H) x 10.60 (D)Without touchscreen: 50.00(W) x 86.00(H) x 9.10(D)Battery Charge/Discharge Parameters:Charge Voltage: Range: 4.2~6.5(V)Typical Value: 5VMaximum Charge Current: 500mAModule Actual Value: 290mACharge Saturation Voltage: 4.24VCharging Temperature: Module Actual Maximum: 62℃Charging Battery Specification: 3.7V Lithium Polymer BatteryElectrical Parameters:Operating Voltage: 5.0VBacklight Current: 79mABacklight Brightness (Actual Value): With Touchscreen: 230cd/m²; Without Touchscreen: 270cd/m²Total Current:ESP32 Reset: 0Display Only Operation: 140mADisplay, speaker, and battery charging active: 560mAPower consumption:0.7W (Display only)2.8W (Display, speaker, and battery charging active)Product list:1X Development board1X Terminal cable1X Power cable1X Speaker
