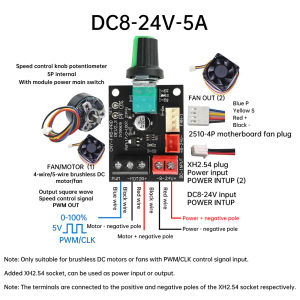

Aideepen | 4-Wire 5A High-Power Fan PWM Speed Controller DC 8-24V for DC Brushless Motors PWM Controller 0-100% Duty Cycle Adjustable

Product Selling Points1. Supports 8-24V wide voltage input, suitable for various brushless motors and violent fan scenarios2. Maximum 5A current output, powerful driving of high-power DC brushless motor, excellent performance3. PWM precision speed regulation technology, smooth adjustment of speed, achieving efficient heat dissipation and silent balance4. The product has an exquisite appearance, simple and convenient operation, and is suitable for DIY modification needs5. Specially designed for high-performance equipment, stable operation without heating, extending service lifeProduct SpecificationsWorking voltage: DC8-24VCurrent usage: 5A (12V60W, 24V 120W)Maximum adjustable duty cycle: 0-100% PWM 5V square wavePWM frequency: 22KHzSelf working power consumption: 20mAStatic current: 0mA (shutdown state)This speed control module is suitable for DC brushless 4-wire/5-wire cooling fans or DC brushless motors (such as computer host cooling fans) with PWM/CLK signal control inputProduct Introduction: This product is a DC brushless motor speed control signal output control module, with a minimum input voltage of 6V and a maximum output voltage of 28V, capable of stable operation between 8-24V. The speed control knob is equipped with a power switch, which can be adjusted to the lowest level. When you hear a clicking sound, the input power is cut off, and the module and fan stop supplying power. The switch allows a maximum current of 5A to pass through;1. An XH2.54 socket has been added to the power input, which can be used as a power input or output to power other peripheral devices2. Added a 2510-4P cooling fan socket, which can adjust speed simultaneously with the wiring terminal3. Solder short-circuit PF point output PWM reverse variation, suitable for reverse timing fans with maximum fan speed when PWM=04. After short circuiting 0% of the solder, the output PWM changes from 0-100. When not short circuited by default, the output PWM changes from 17% -100, mainly to avoid some fans not turning when they are just turned onPacking ListPWM speed controller * 1
