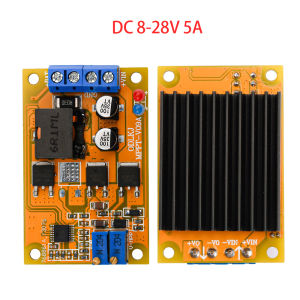

DC 8-28V 5A 6A 100W MPPT Solar Charge Controller Auto Switch 9V 12V 24V Solar Panel Regulator with Anti-reverse Protection

DC 8-28V 5A 6A 100W MPPT Solar Charge Controller Auto Switch 9V 12V 24V Solar Panel Regulator with Anti-reverse ProtectionDC8-28V5AFeatures:1. MPPT maximum power point tracking technology, automatically adjust the output current, maximize the use of solar energy2. Wide voltage input range (DC 8-28V), suitable for a variety of battery types, strong compatibility3. Ultra-low power consumption design, reduce voltage loss and increase conversion efficiency to 95% peak value4. Multiple protection functions, including input reverse connection protection and night-time anti-reflow protection, safer to use5. Industrial-grade operating temperature range (-40°C to +85°C), adapt to extreme environments, stable and reliableParameter:Product name: MPPT solar charging panelInput voltage: DC 8-28VOutput voltage: DC 5-26V infinitely adjustableOutput current: 5APower: 100WCharging indicator: Yes. Rapid charging red light is on for a long time, fully charged red and blue lights flash alternately. Full automatic stopMPPT function: Yes, MPPT maximum power point automatic tracking function, can maximize the full use of solar chargingMinimum voltage difference: 1V (because it is a buck regulator module, the input voltage should be at least 1V higher than the output)Ultra-low power consumption: Yes. Adopt ultra-low dropout design to achieve low power consumption and higher conversion efficiency, specialized in adapting to solar panels.Operating temperature: industrial grade (-40°C to +85°C)Load Adjustment Ratio: Std. 1%Voltage Adjustment: -0.5%Conversion efficiency: Max: 93% Peak: 95% Varies with different light conditions.Charging mode: Fully automatic intelligent three-stage charging mode. Self-tracking solar power automatically adjusts the charging current sizeNo-load current: 3mA Even the weak sunlight in the morning can easily start automatically, eliminating the need for manual switching.Input reverse connection protection: Yes, MOS tube ultra-low voltage difference anti-reverse connection protection, input reverse connection does not work.Output reverse current protection: Yes. Effectively prevent the battery from flowing back to the charging board at night.Wiring mode: with terminalsMPPT voltage: arbitrary adjustable, different solar modules MPPT voltage is different. Low power consumption design program, reduce voltage loss, MPPT function can effectively prevent the solar panel voltage by the battery dragged to death and thus slow chargingModule nature: with real MPPT solar maximum power point tracking function, fully automatic intelligent charging management, low power consumptionSize: 5.23.72.2cmDescription:Adopting advanced MPPT solar maximum power tracking technology, 5A high current intelligent trickle, constant current, constant voltage charging management board, full automatic stop, sleep at night, and start independently during the day to realize unattended intelligent management.Precautions:For the first time charging, please adjust the output voltage in advance and closely monitor the battery voltage to prevent overcharging! Please do not charge the unprotected lithium battery.Package include:Module x1DC8-30V 6AFeatures:1.The product is made of high-quality materials with guaranteed quality2.Stable product performance and long service life3.Maximum supported solar power: 100W, truly efficient MPPT4.The output voltage can be adjusted arbitrarily, and CC-CV can be automatically controlled (it can support single or multiple lithium batteries or Lithium iron phosphate or lead-acid batteries)5.The battery terminal is equipped with overvoltage protection functionParameter:Maximum power point tracking of solar cells, output current greater than solar panel current, truly efficient MPPT, supporting 7V-28V, up to 100W solar panelsThe output voltage can be adjusted arbitrarily, and the CC-CV is automatically controlled (it can support single or multiple lithium batteries or Lithium iron phosphate or lead-acid batteries)Complete charging management of the batteryMaximum supported solar power: 100WPWM switching frequency: 300KHzAdaptive adjustment of constant current charging current 6ATrickle charging of deeply discharged batteriesDual indication of charging status and charging end status (red light on during charging/full blue light on/red light flashing/green light constantly on, indicating no battery connected)Soft start functionBattery end overvoltage protectionModule nature: buck type with maximum power point tracking charging boardInput voltage 8-30VThe output voltage is adjustable from 4.2-28V, and the input is at least 2V higher than the outputOutput current 6A adaptive adjustmentConversion efficiency: typical 92% output 18V output 14VPackage include:Module X1
